Streamlight TLR 4 | 170 Lumens Rail Mounted Tactical Light

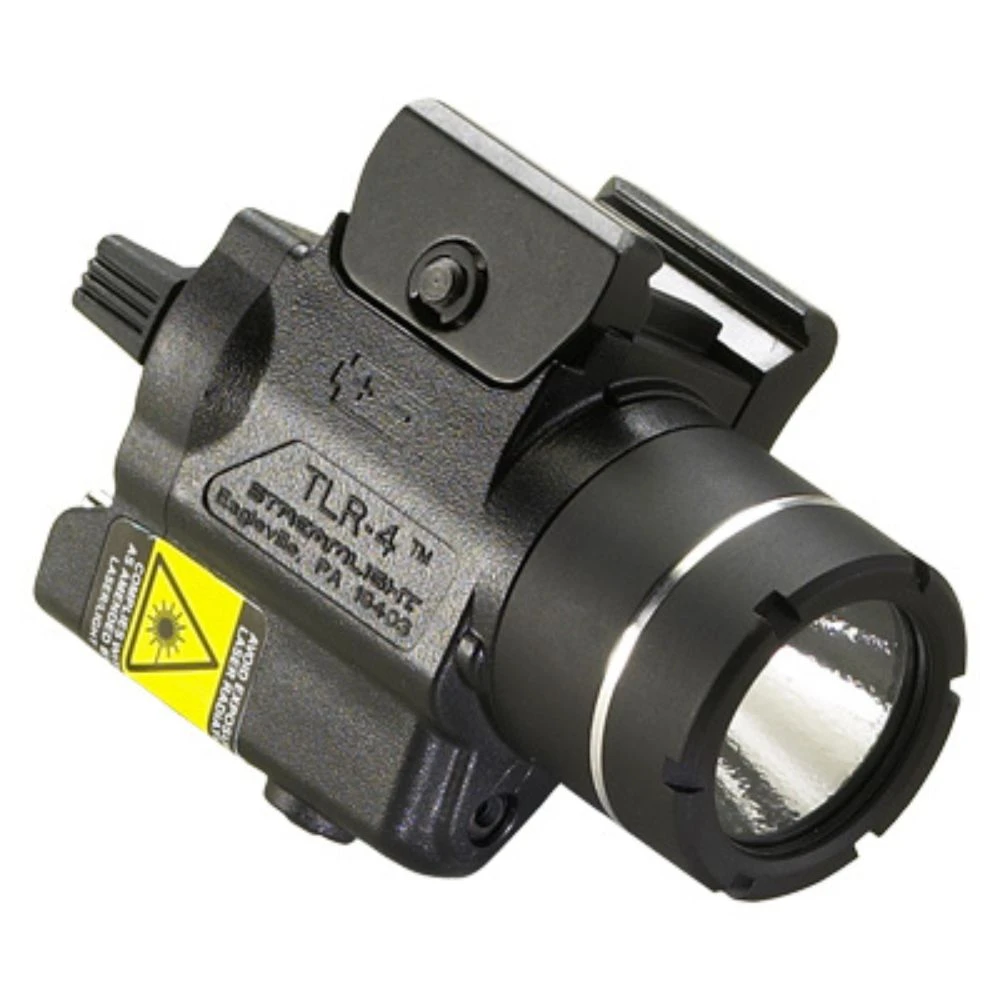

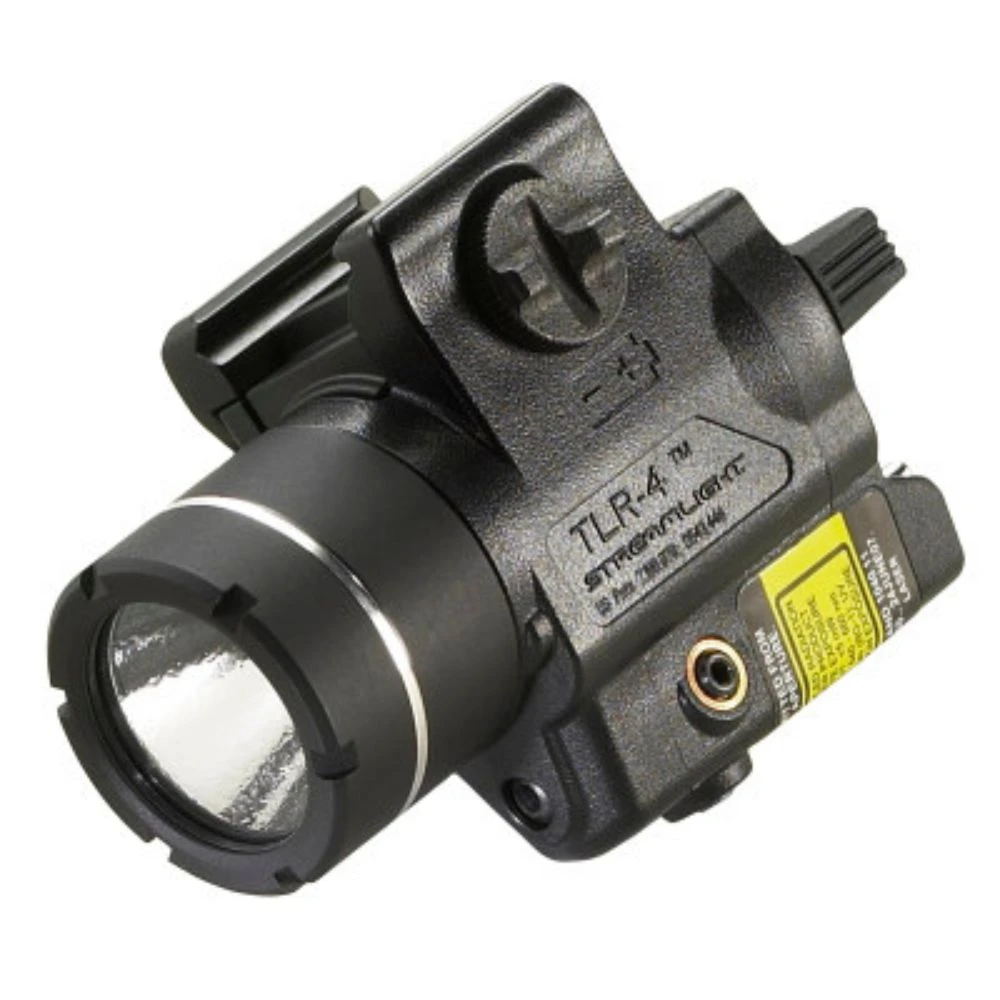

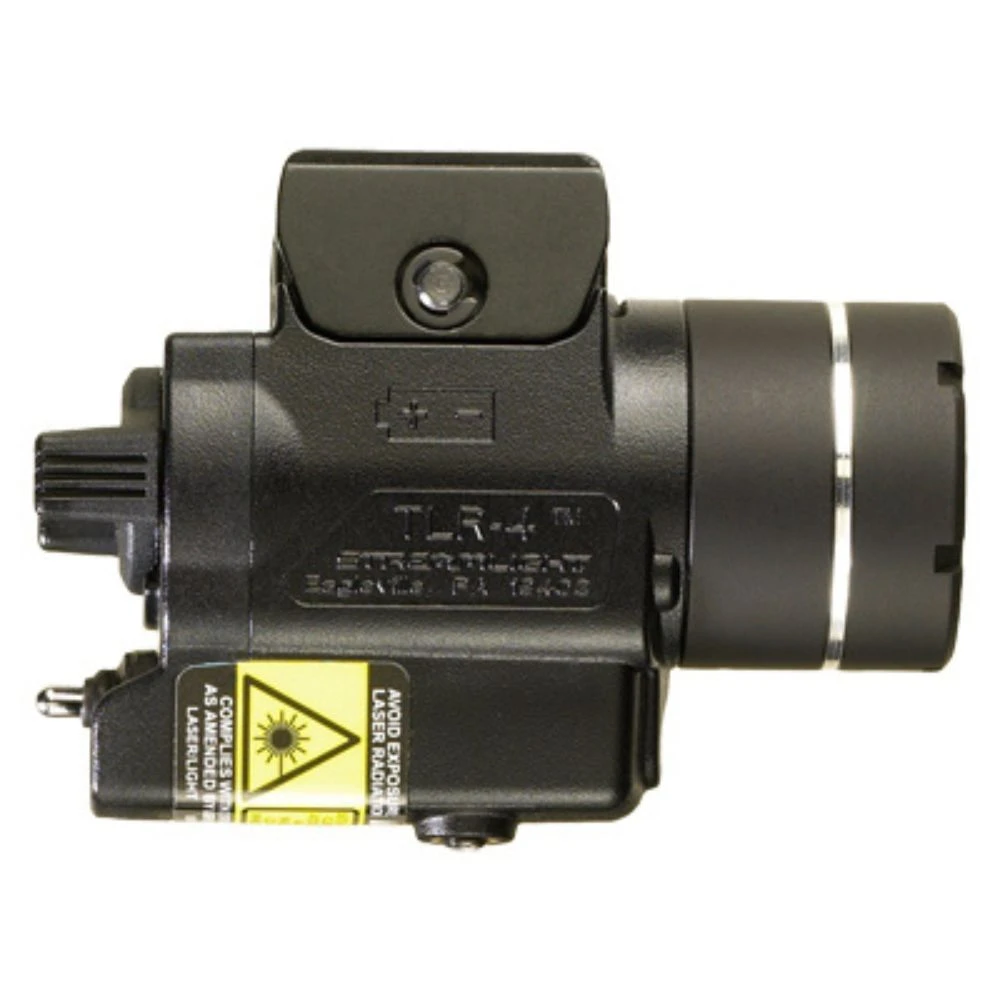

The Streamlight TLR-4 is a compact, rail-mounted tactical light with an integrated aiming laser.
Its designed to fit compact and sub-compact handguns, and most full-sized handguns with rails, using a rail grip clamp system that attaches and detaches quickly and securely.
The device uses the latest C4 LED technology and maintains continuous runtime for 1.5 hours in dual mode with a high-power visible laser.
It produces 170 lumens of light output, with a peak beam intensity of 3,300 candela and a beam distance of 115 meters.

Streamlight TLR-4 Rail Mounted Light Review

Streamlight TLR4 Features

Compact and lightweight design
Integrated aiming laser featuring the latest C4® LED technology
1.5 hours of continuous runtime when in dual mode with the high-power visible laser
Rapid attach/detach from the side of the weapon with a rail clamp
Models available for H&K USP Compact frame and H&K USP Full Size frame
Impact-resistant Engineering polymer body available in Black color
6000 series machined aircraft aluminum facecap with black anodized finish
Dimensions: Length: 2.73 inches, Width: 1.20 inches, Height: 1.99 inches
Weight: 2.81 oz with battery included with purchase
Borofloat high-temperature glass lens
Light output: 170 lumens, 3,300 candela peak beam intensity, and 115 m beam distance
Ambidextrous momentary/steady On-Off switch
Mode Selector switch for Laser only, LED illumination only, or both Laser and LED
One (1) 3 Volt CR2 lithium battery with a storage life of 10 years
Windage and Elevation adjustment screws mounted in brass bushings
Operating temperature: -20°F to +120°F
IPX4 rated design for water-resistant operation
Serialized for positive identification
Meets applicable European Community Directives
Covered by Streamlights Limited Lifetime Warranty
Optional mounting adapters available.

Whats in the box of the TLR 4 Streamlight?

TLR-4 with rail locating keys
CR2 lithium battery
User manual
Mounting adapters (optional)

TLR-4 Streamlight Specifications

Model: Streamlight TLR-4
Type: Compact rail-mounted tactical light with integrated red laser sight
Applications: Law Enforcement, Security, Sporting Goods, Consumer
Material: Impact resistant Engineering polymer body with 6000 series machined aircraft aluminum facecap
Color: Available in Black
Dimensions: Length – 2.73 in. (6.93 cm), Width – 1.20 in. (3.05 cm), Height – 1.99 in. (5.05 cm)
Weight: 2.81 oz (79.7 grams) with battery
Lens: Borofloat high temperature glass
Light source: C4® LED technology, impervious to shock with a 50,000 hour lifetime; 640-660nm red laser
Light Output: 170 lumens, 3,300 candela peak beam intensity, 115 m beam distance; Optimized electronics provide regulated intensity; Laser provides long-range targeting
On/Off: Ambidextrous momentary/steady On-Off switch; Three position Mode Selector switch for Laser only, LED illumination only or both Laser and LED
Run Time: LED only or LED and Laser – 1.5 hours regulated run time to the 10% output level; Laser only – 15 hours regulated output
Battery: One (1) 3 Volt CR2 lithium battery, with a storage life of 10 years

Streamlight TLR 4 FAQs

What is the luminosity of the TLR4 Streamlight?

The Streamlight TLR-4 offers 170 lumens of brightness. If it comes with a green laser, it provides 160 lumens of brightness.

What is the run time of the Streamlight TLR-4?

The Streamlight TLR-4 can run for 1.5 hours when using the light only or the light/laser combination. If youre using the laser only, it can run for up to 15 hours.

What type of battery does the Streamlight TLR-4 use?

The Streamlight TLR-4 uses one CR2 lithium battery.

Is the Streamlight TLR-4 water-resistant?

Yes, the Streamlight TLR-4 is designed with an IPX4 rating indicating water-resistant operation.

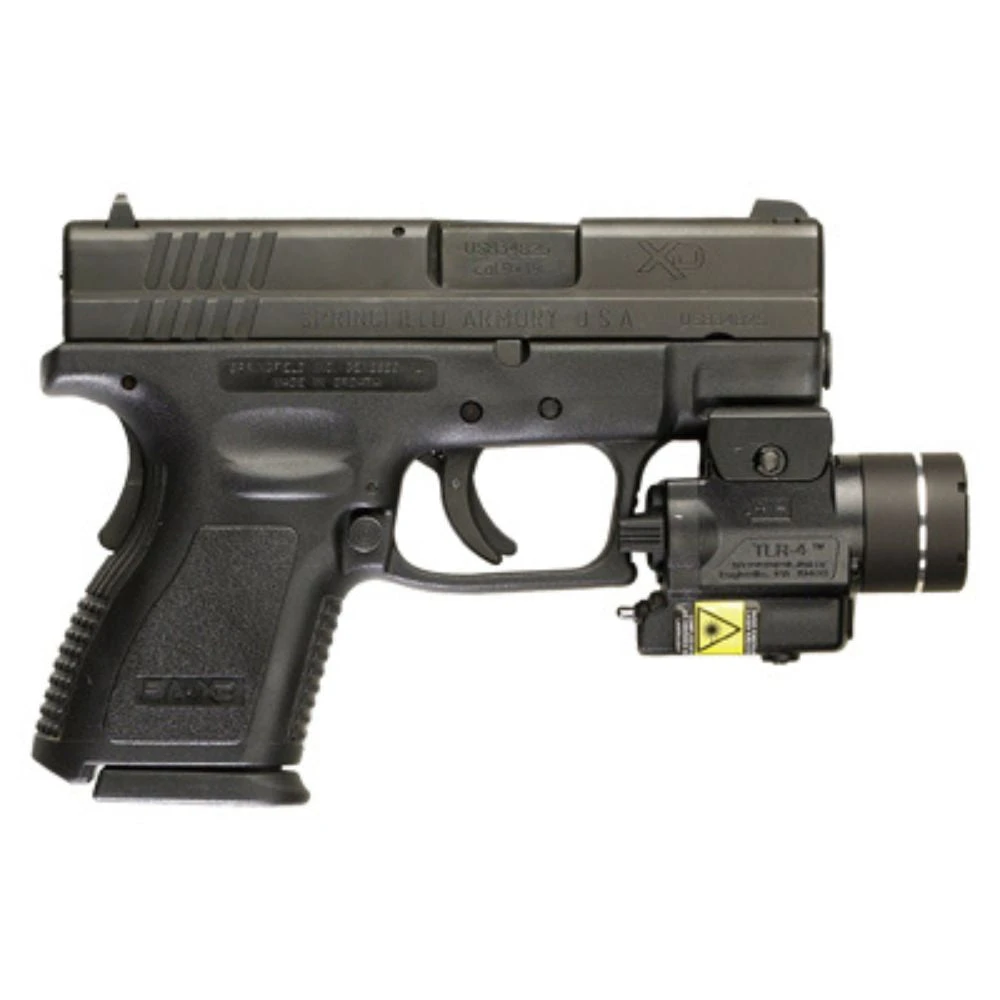

What types of weapons does the Streamlight TLR-4 fit?

The Streamlight TLR-4 fits a broad range of guns. It comes with a rail grip clamp system which allows it to securely attach/detach quickly and safely with no tools and without putting your hands in front of the muzzle.
