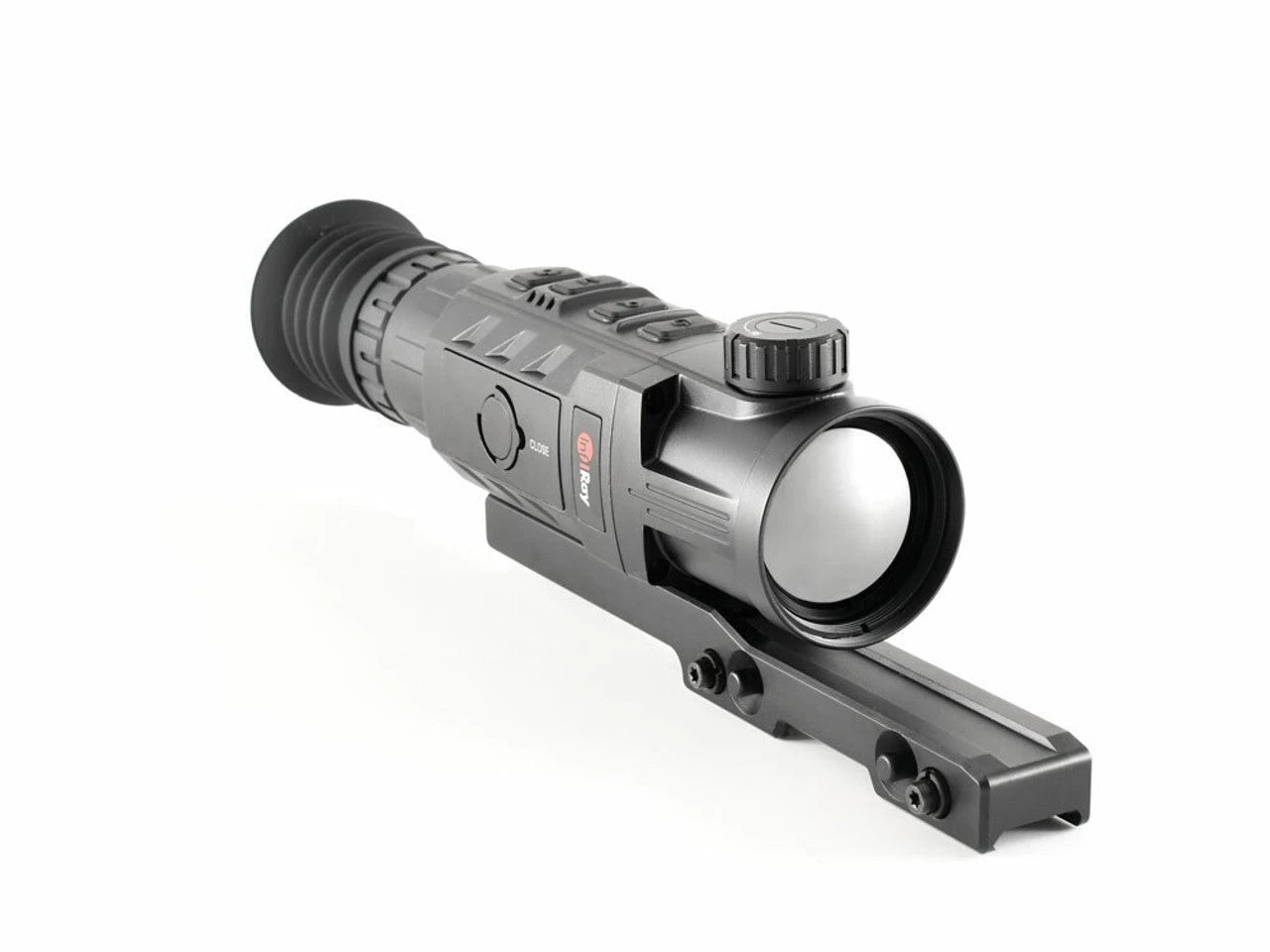

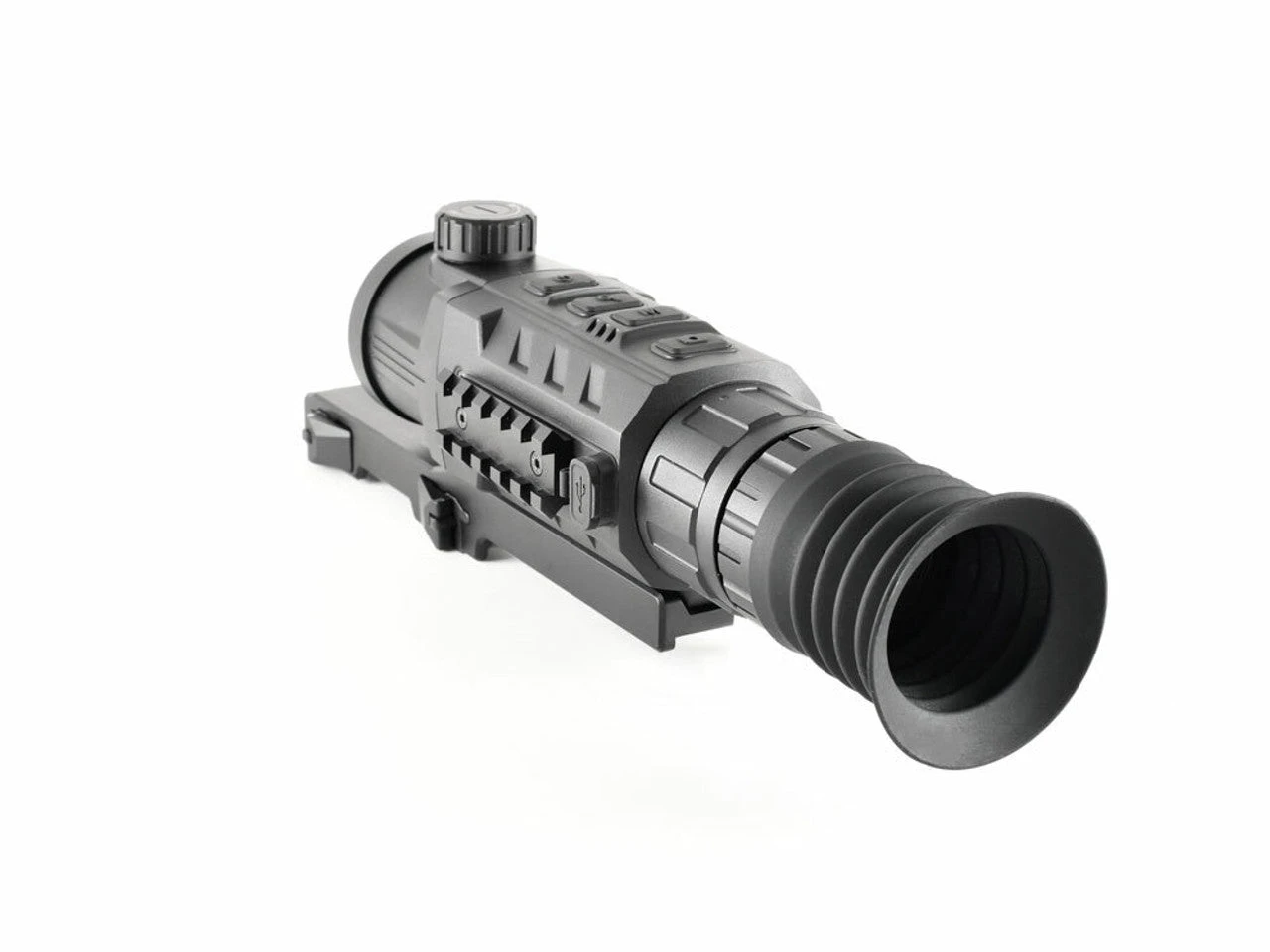

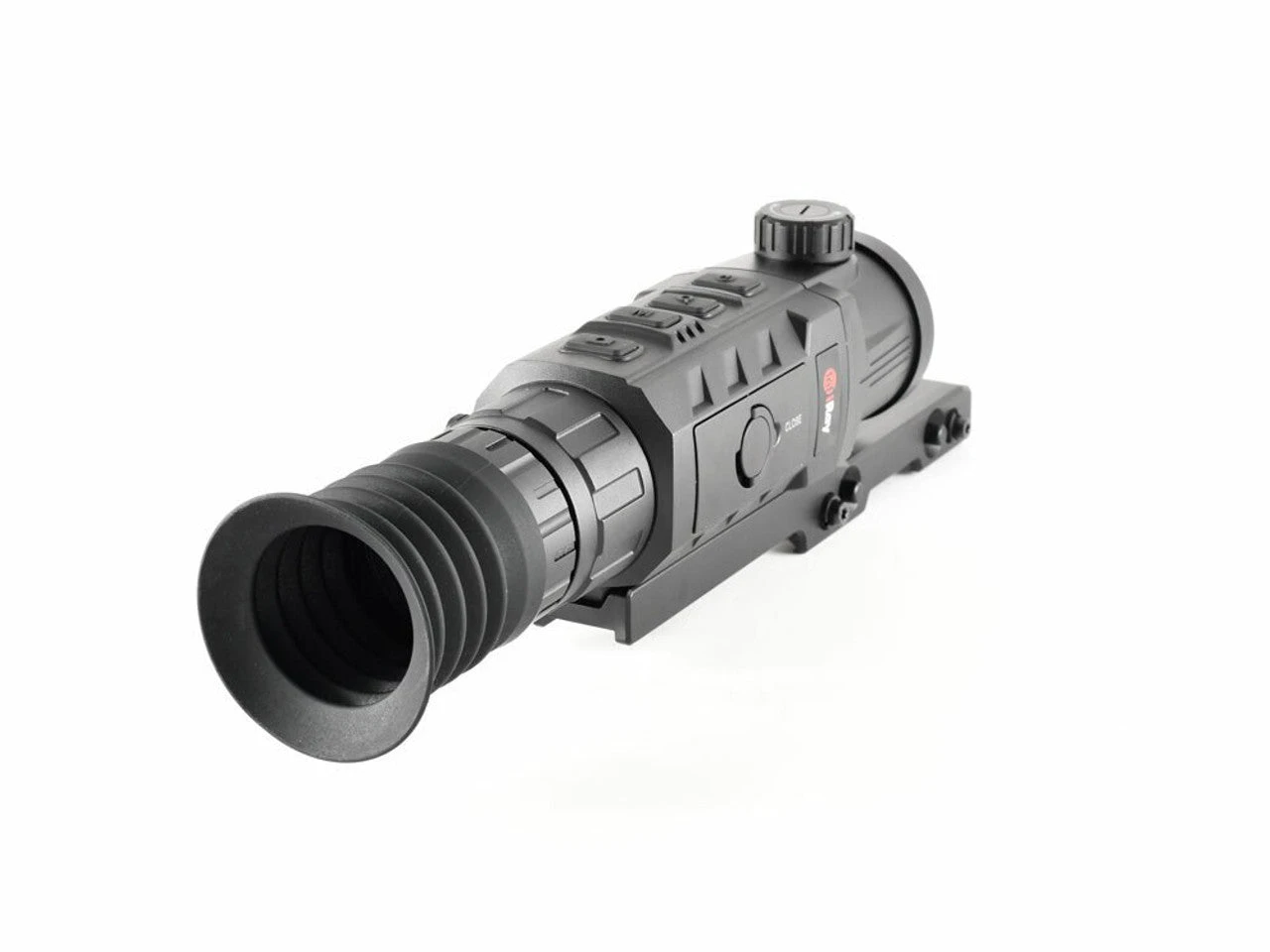

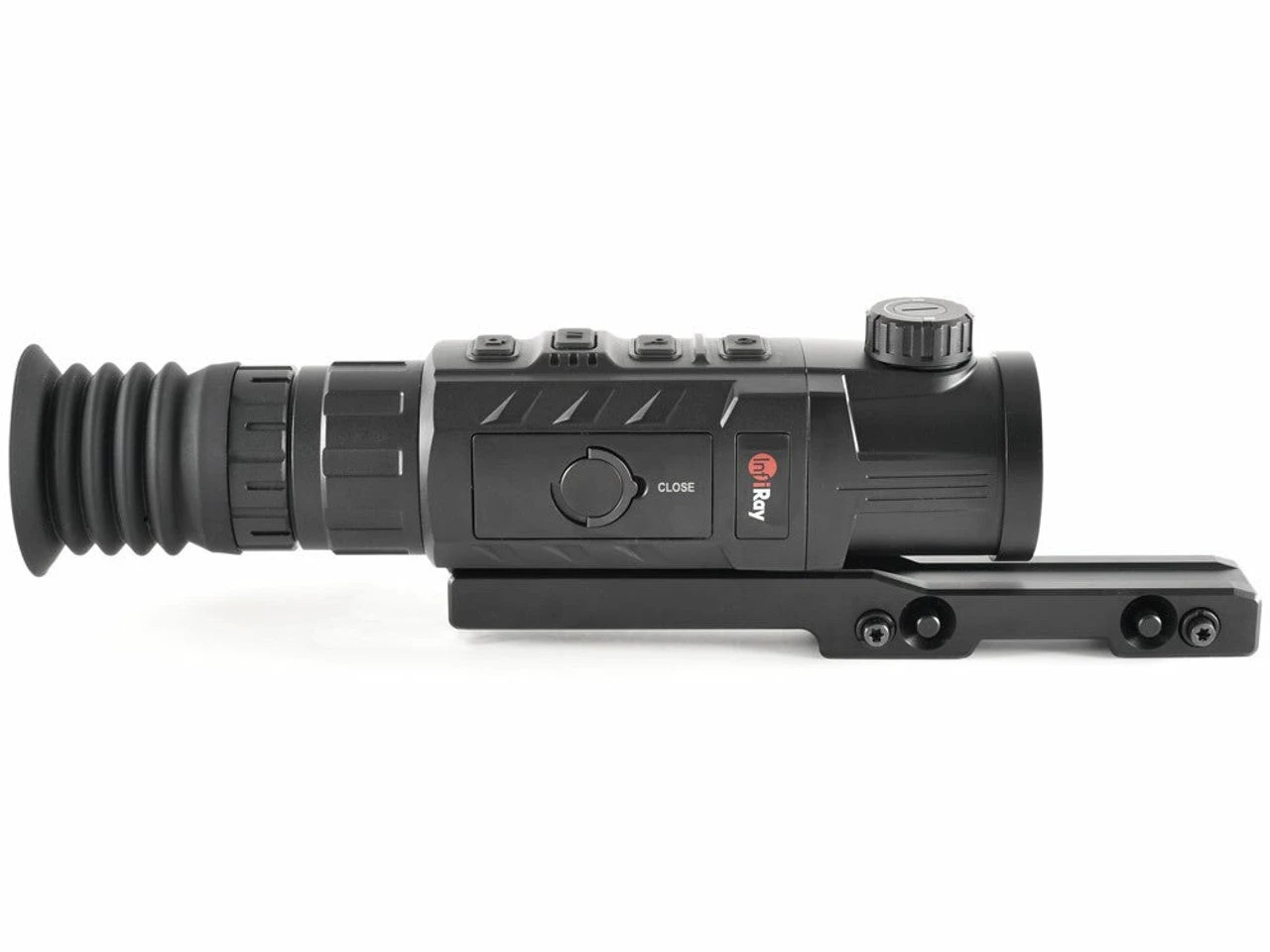

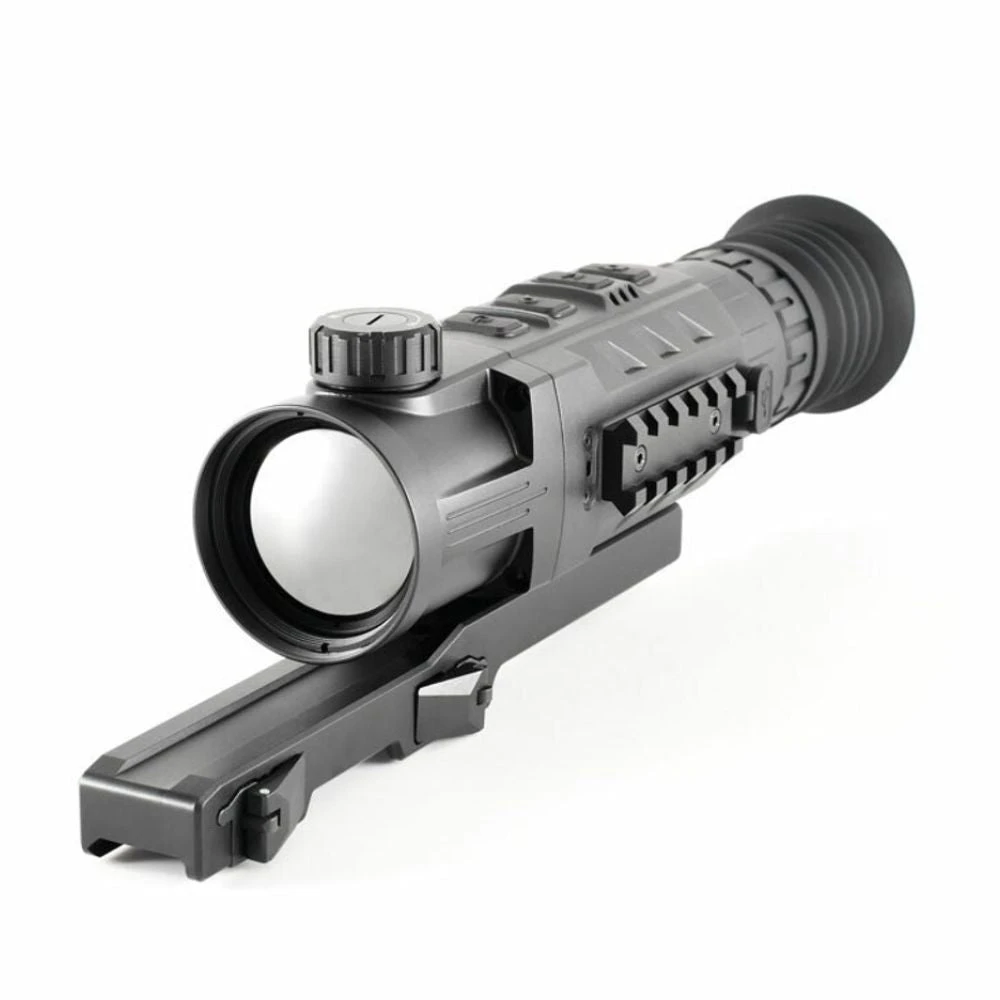

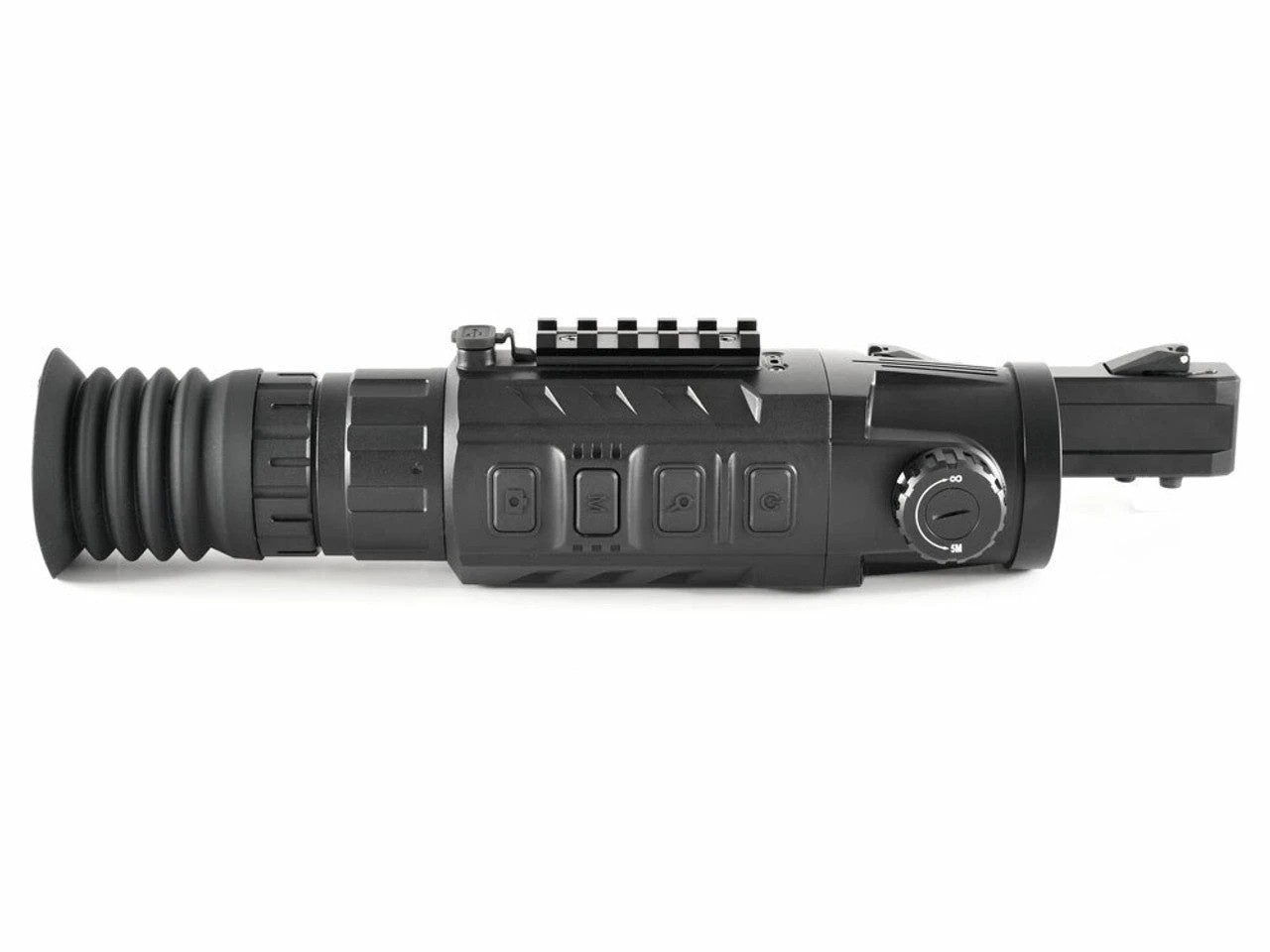

iRay Rico Mk1 | Thermal Weapon Sight

The iRay Rico Mk1 boasts an impressive high contrast AMOLED HD display and further enhances image processing with Advanced Image Correction and Automatic Image Optimization, courtesy of the MATRIX III image algorithm.
It offers unmatched image quality, complemented by an intuitive user interface, picture-in-picture function, 6-hour runtime, durable aluminum alloy housing, and 32 GB of internal memory.
The Mk1 is powered by an efficient li-ion 3.7 V, 4400 mAh battery pack, ensuring a minimum of 6 hours of operation and up to 10 hours on standby.
The device comes with onboard recording features and provides video and image capture options. The warranty coverage for the device spans 5 years.
For your viewing comfort, it provides a diopter range of -4 to +4. It also offers a detection range of 2400 yards.

iRay Rico Mk1 Features

High contrast AMOLED HD display
Advanced Image Correction and Automatic Image Optimization with MATRIX III image algorithm
6 hour run time with a 3.7 V, 4400 mAh battery pack
Aluminum alloy housing with 1000 G shock resistance
32 GB of internal memory
Optically and electronically optimized system
Manual, Automatic, and Semi-Automatic Non-Uniformity Correction (NUC)
Thermal Imaging Sensor with a Frame Rate of 50hz
Detection Range of 2400 Yards
Objective Focal Length of 50mm f/1.1 made with Germanium
Onboard Recording for Video and Image
5 Years Warranty
Option for ILR-1000 LRF Rangefinder
Recoil Rating of 1000 g/s² (300 Win./7mm Mag)
Ingress Protection of IP67
Device dimensions: Length – 9.84″, Width – 2.28″, Height – 2.40″, Weight – 29.63 Oz
Equipped with Picatinny STD-1913 rail as Mounting Interface
7 different reticle options
MATRIX III Image Processing
Spectral Response of 8-12 Microns
Eye Relief of 55mm
Digital Magnification of 4X
Diopter Range of -4 – +4
Maximum Recoil: 300 Win./7mm Mag
Operation Temperature range: -4°F~122°F
Housing Material: Aluminum
Ingress Protection: IP67
5 Years Warranty
Eye Relief: 55 mm
Power Supply via USB-C External, IBP-1 Li-ion Battery Pack (6+ Hours)
Start-Up Time: <10 Seconds, Instant from Standby
Size: 9.84” × 2.40” × 2.28”
Weight: 29.63 Oz

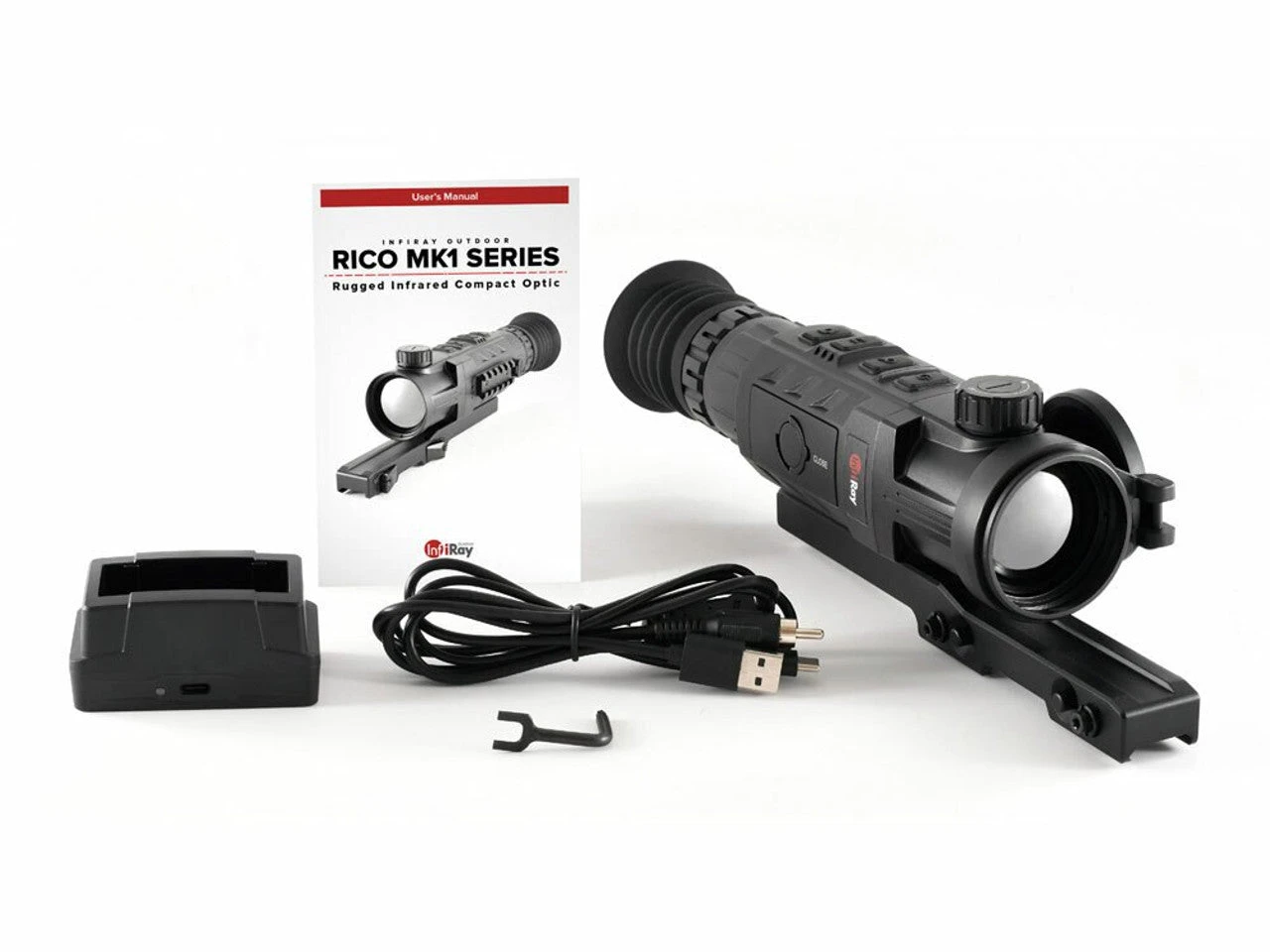

What’s in the box of the iRay Rico Mk1?

iRay Rico Mk1 640 50mm Thermal Imaging Scope
Li-ion 3.7 V, 4400 mAh Battery Pack
USB-C Cable for Data Transfer and Power Supply
Picatinny MIL-STD 1913 Rail for Mounting
User Manual and Warranty Card (Warranty: 5 Years)

iRay Rico Mk1 Specifications

Sensor Specifications: Resolution 640×512, Pixel Size 12 μm, Frame Rate 50hz, Image Processing MATRIX III, Core InfiRay Micro II 640
Optics: Objective Lens 50 mm f/1.1, Magnification 3×, Digital Zoom 4×, Field of View 8.8° × 6.6°, Detection Range 2400 Yards, Display Type AMOLED, Display Resolution 1024×768
Electronics: Onboard Recording Video and Image, Onboard Storage 32 GB, Wireless Connectivity Video and Image via App, Data/Power Connector USB-C, Power Supply USB-C External, IBP-1 Li-ion Battery Pack (6+ Hours), Start-Up Time <10 Seconds, Instant from Standby
Physical: Size 9.84” × 2.40” × 2.28”, Weight 29.63 Oz
Environmental/Warranty: Housing Material Aluminum, Ingress Protection IP67, Operation Temperature -4°F~122°F, Max. Recoil 300 Win./7mm Mag, Warranty 5 Years

iRay Rico Mk1 FAQs

What is the detection range of the iRay Rico 640?

The iRay Rico Mk1 has an impressive detection range of up to 2400 yards.

What is the thermal sensitivity of the iRay Rico 640?

The iRay Rico Mk1 exhibits a thermal sensitivity of less than 50mk.

Can the iRay Rico 640 record video and images?

Yes, the iRay Rico Mk1 allows for onboard recording of both video and images.

What type of battery is used for the iRay Rico Mk1, and how long does it last?

The iRay Rico Mk1 uses a high-efficiency li-ion 3.7 V, 4400 mAh battery pack that operates the device for a minimum of 6 hours, and up to 10 hours on standby.
