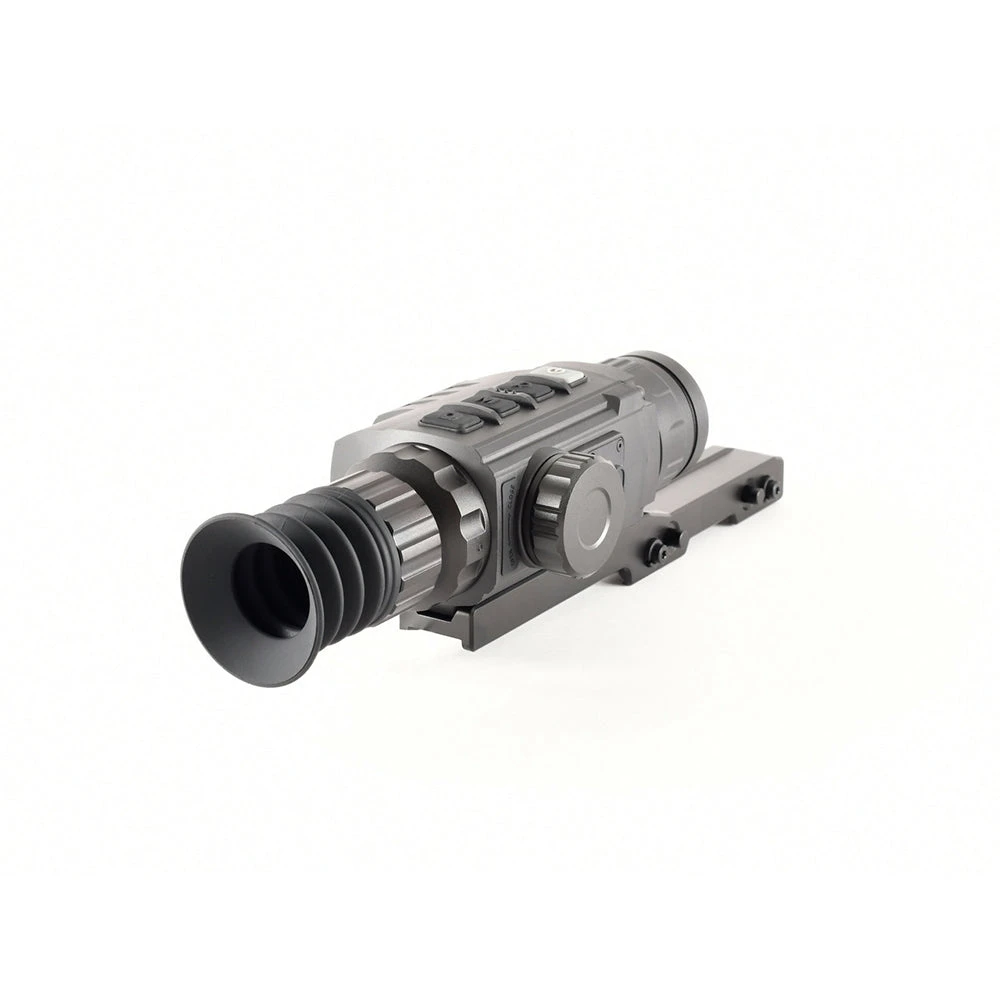

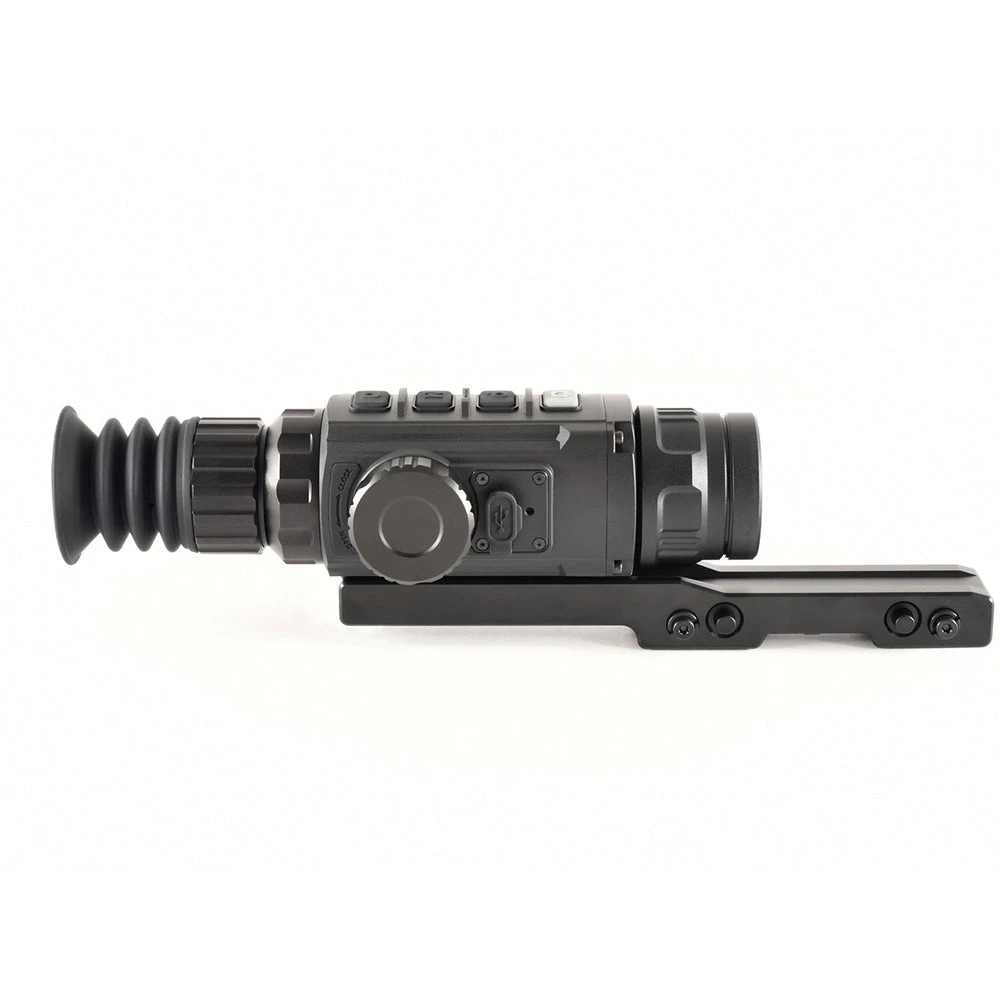

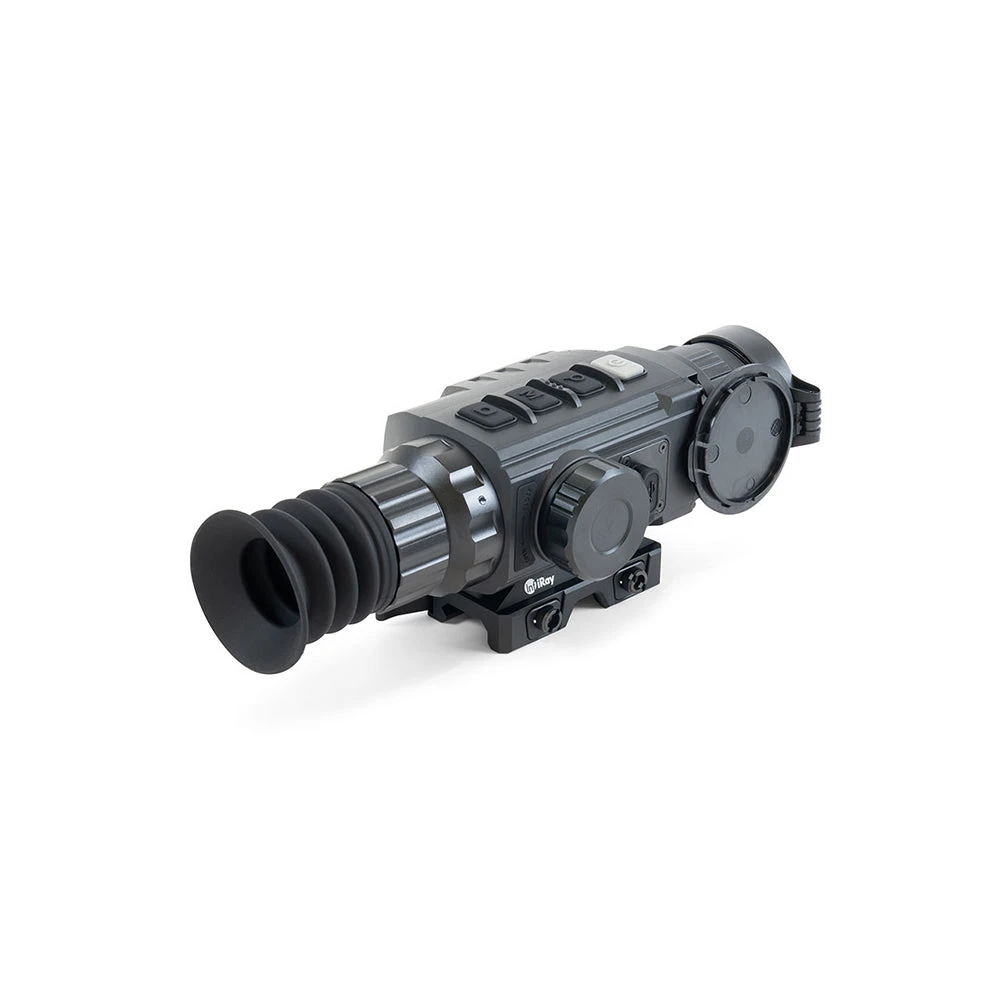

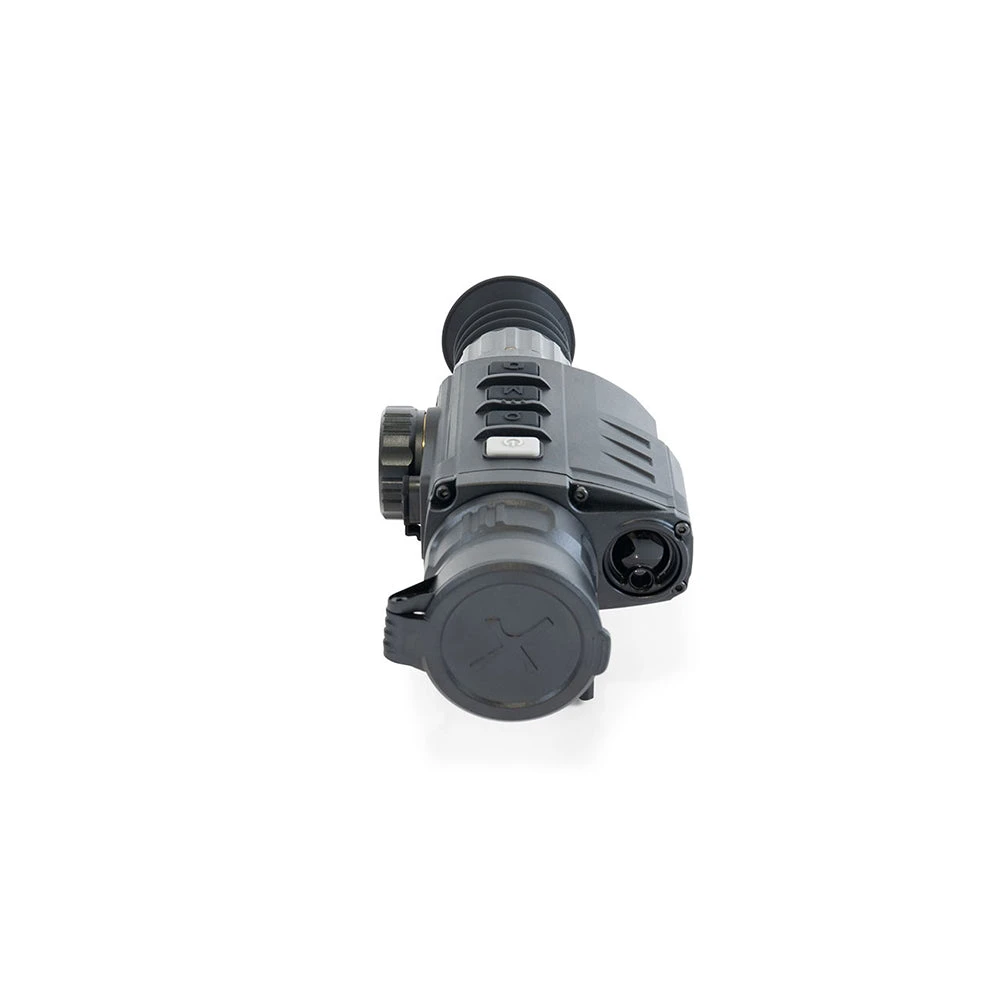

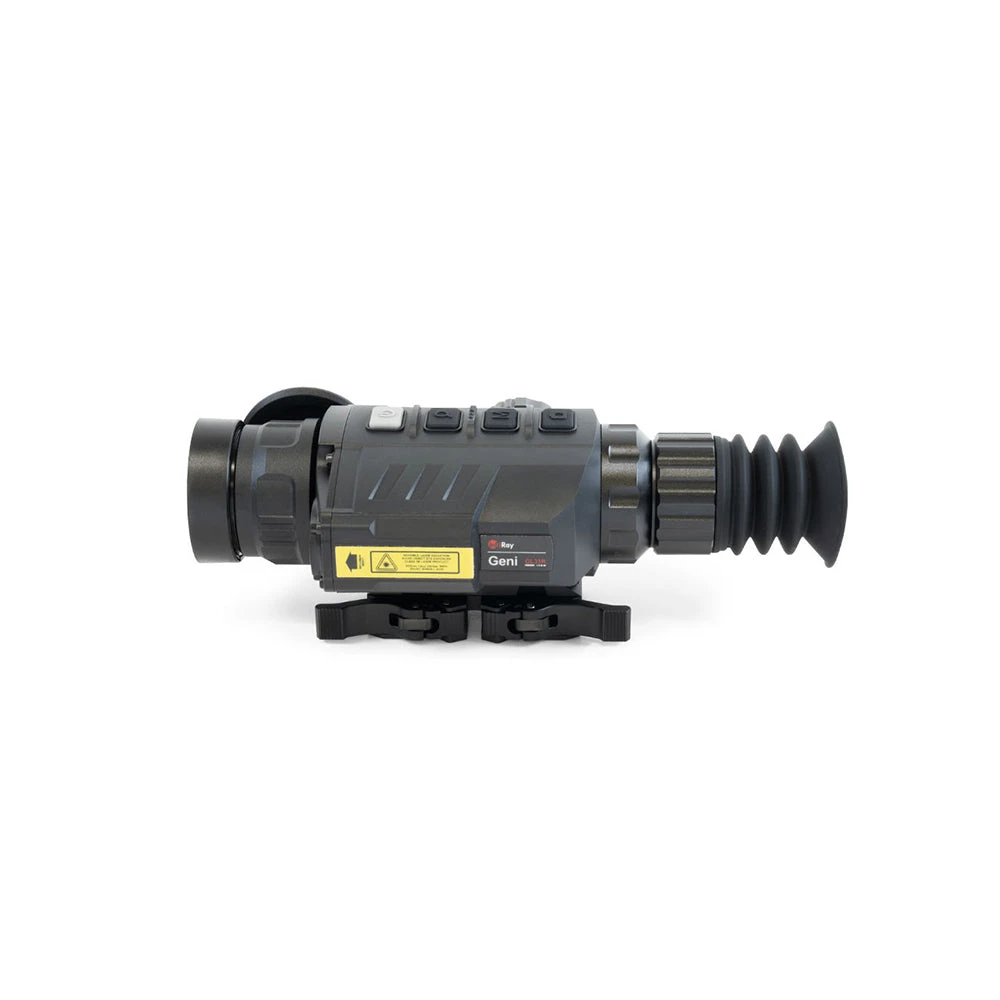

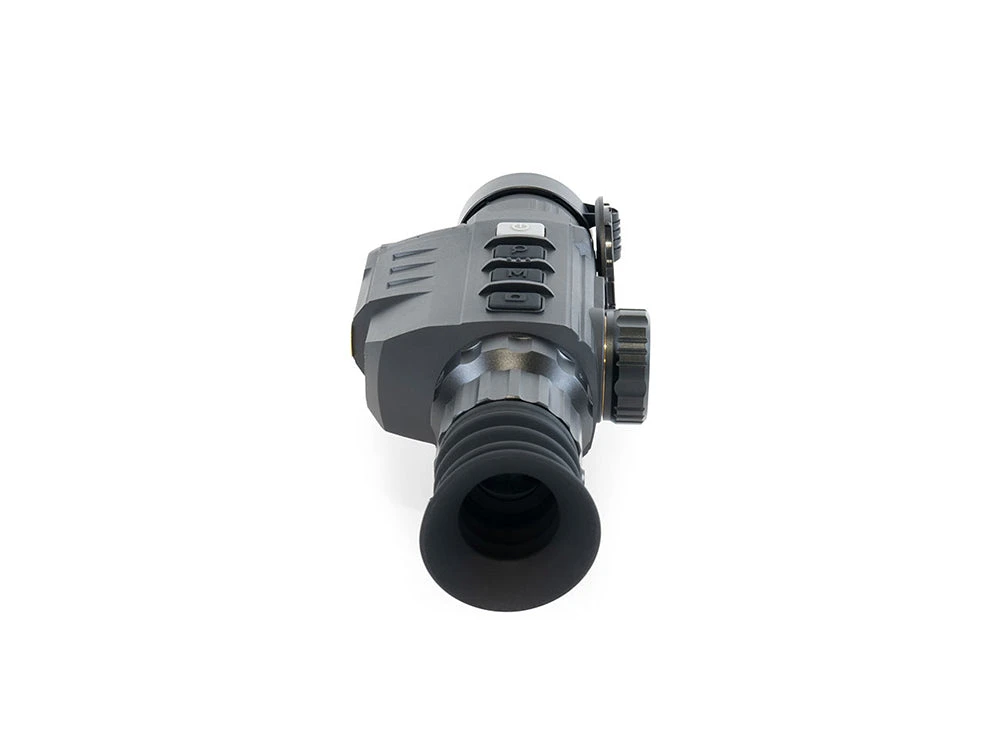

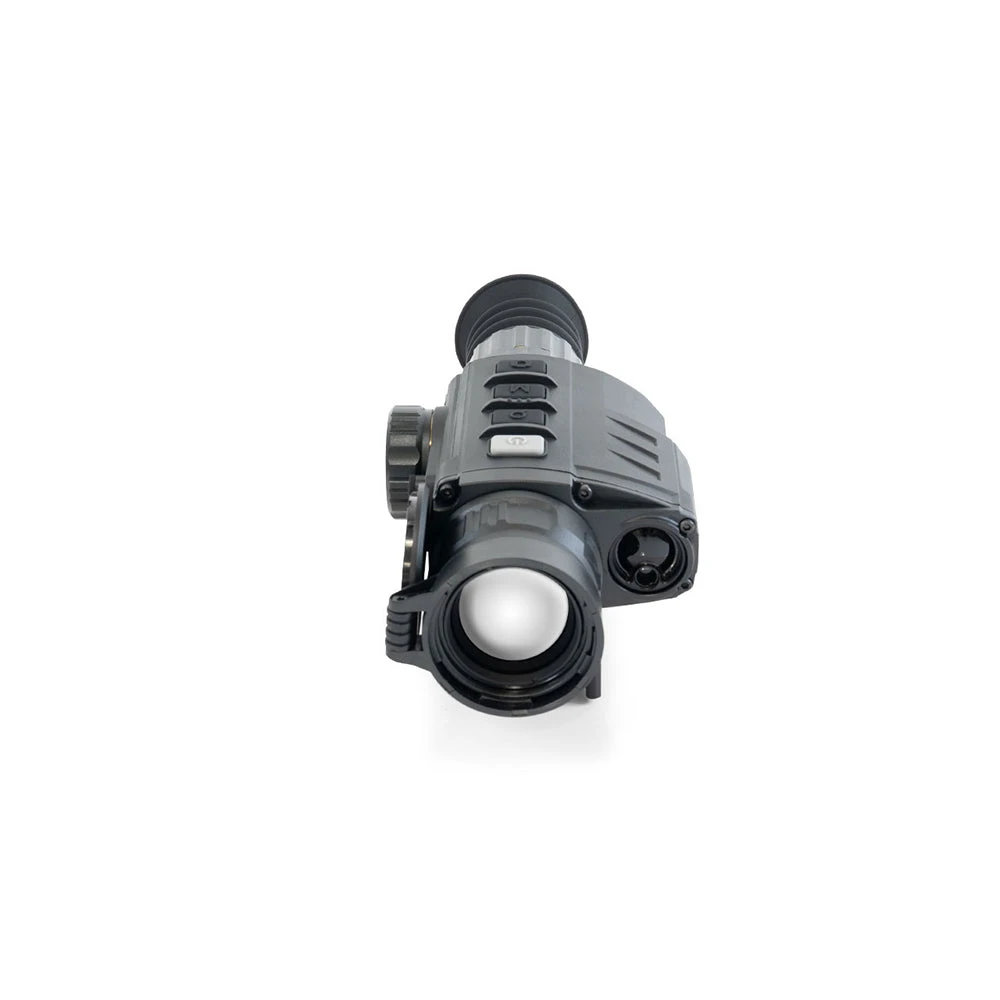

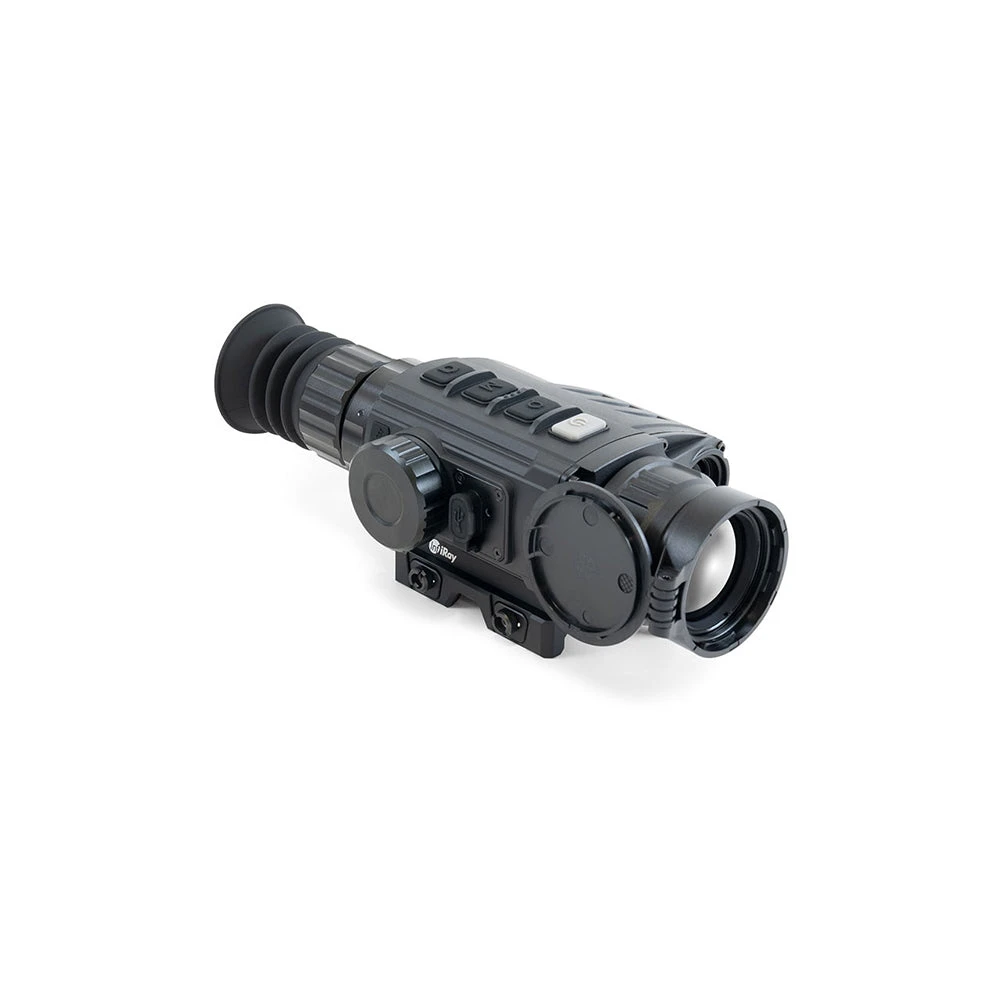

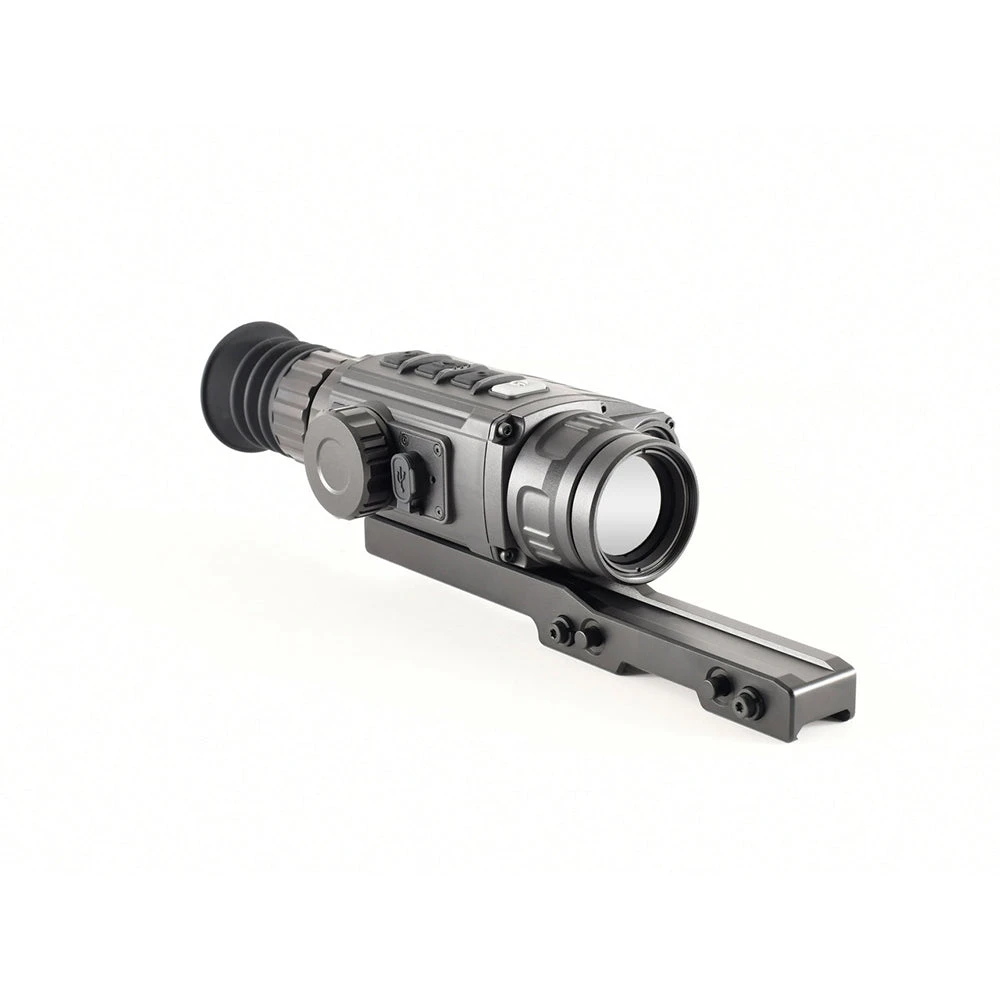

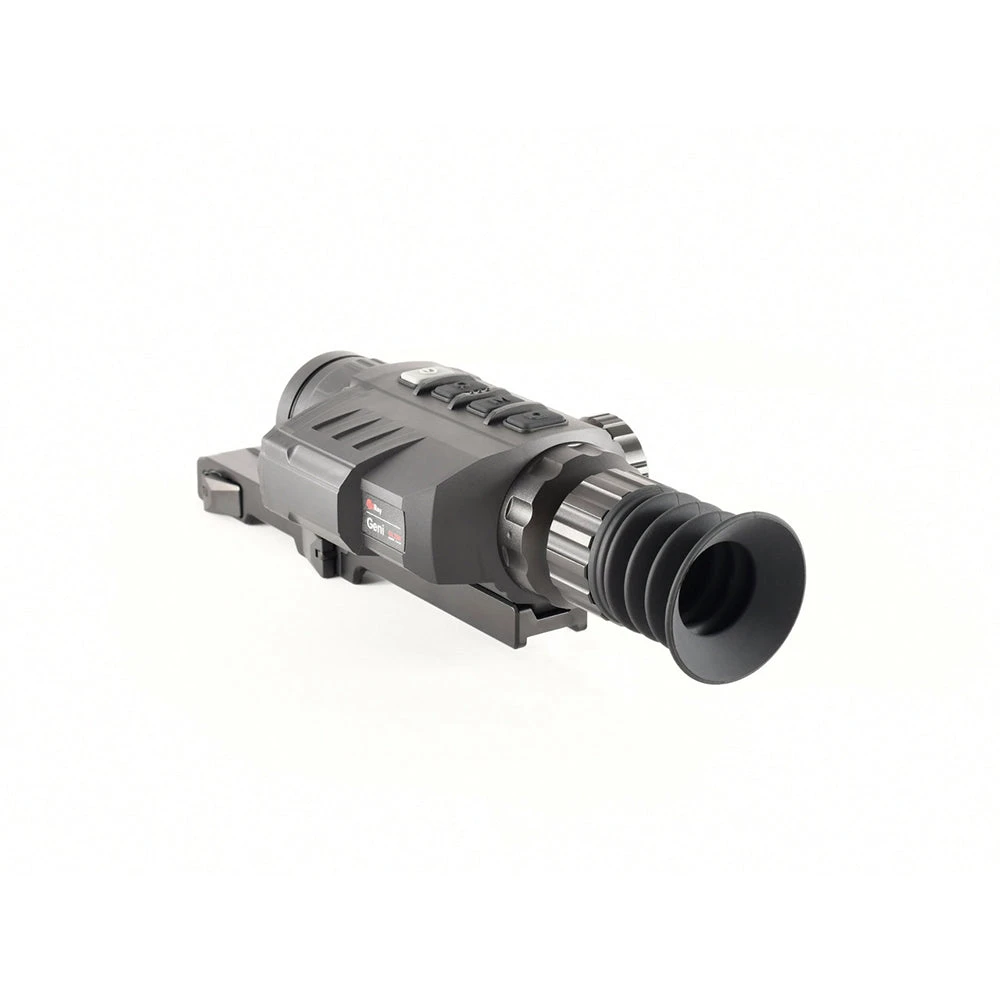

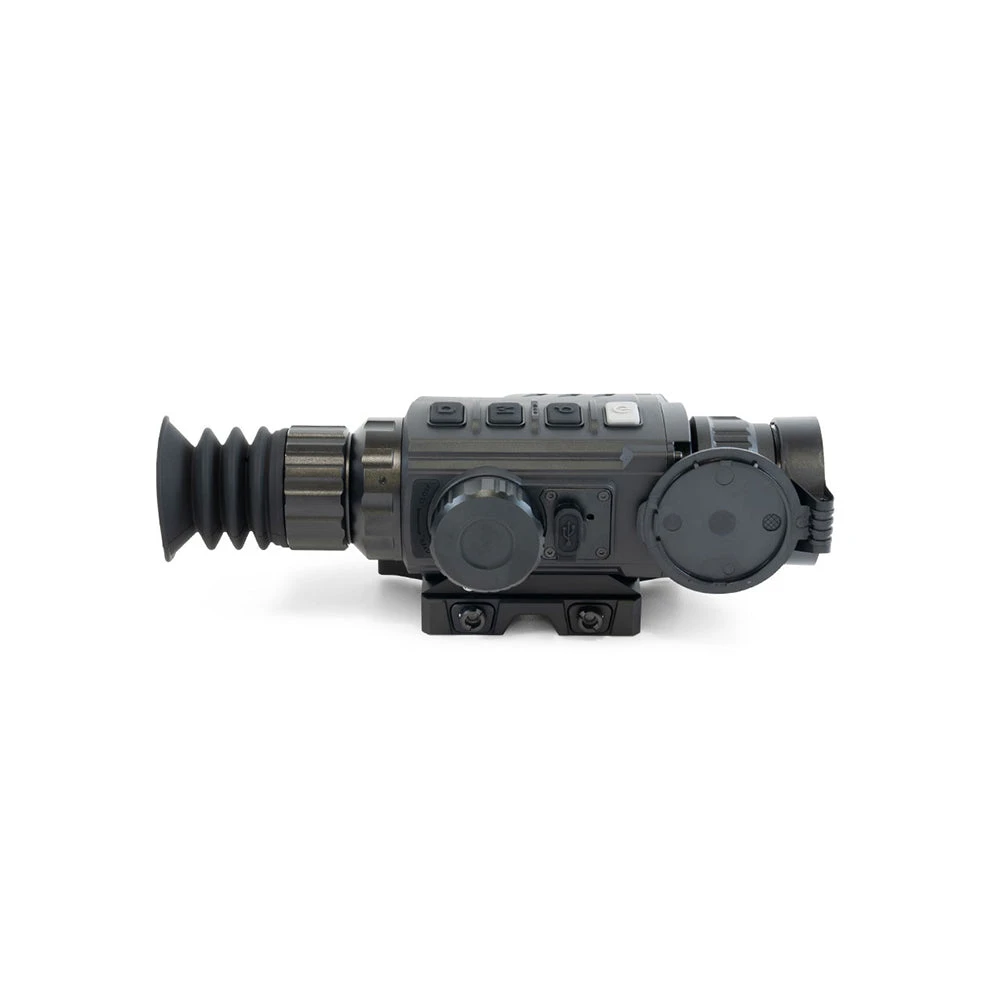

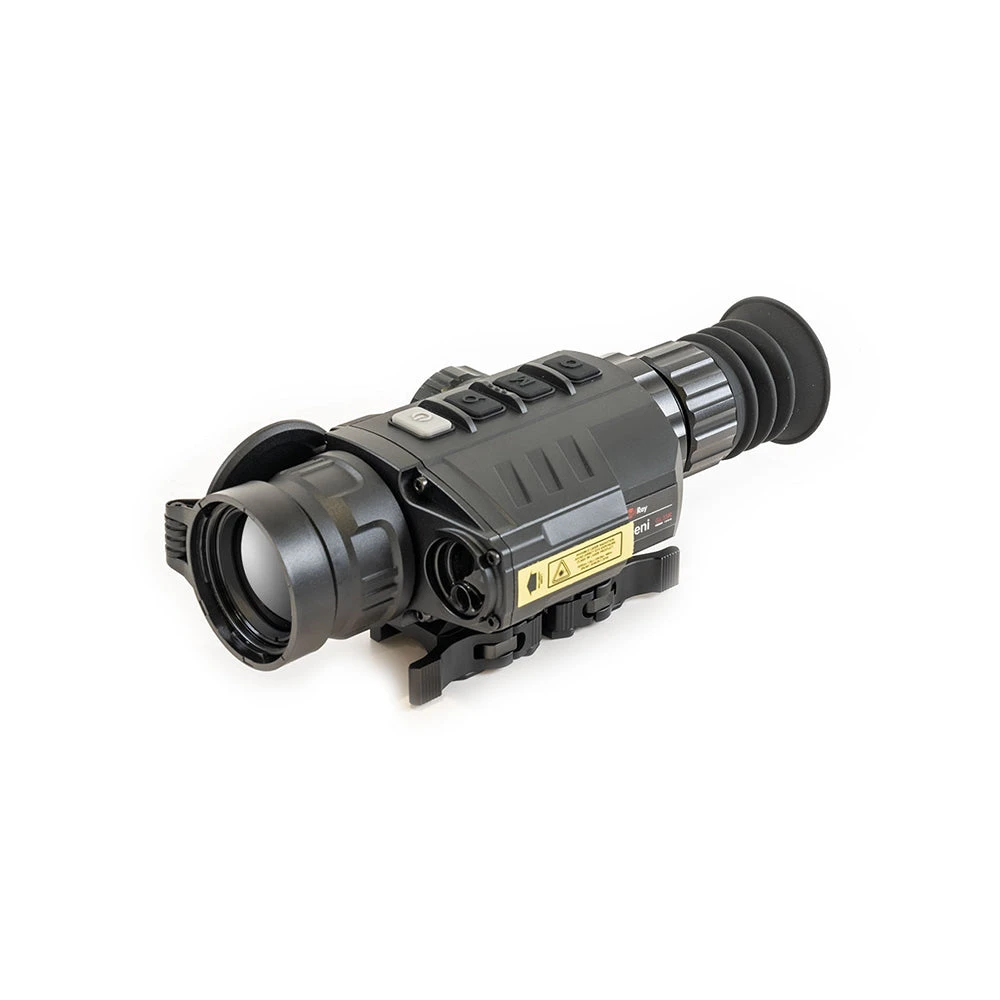

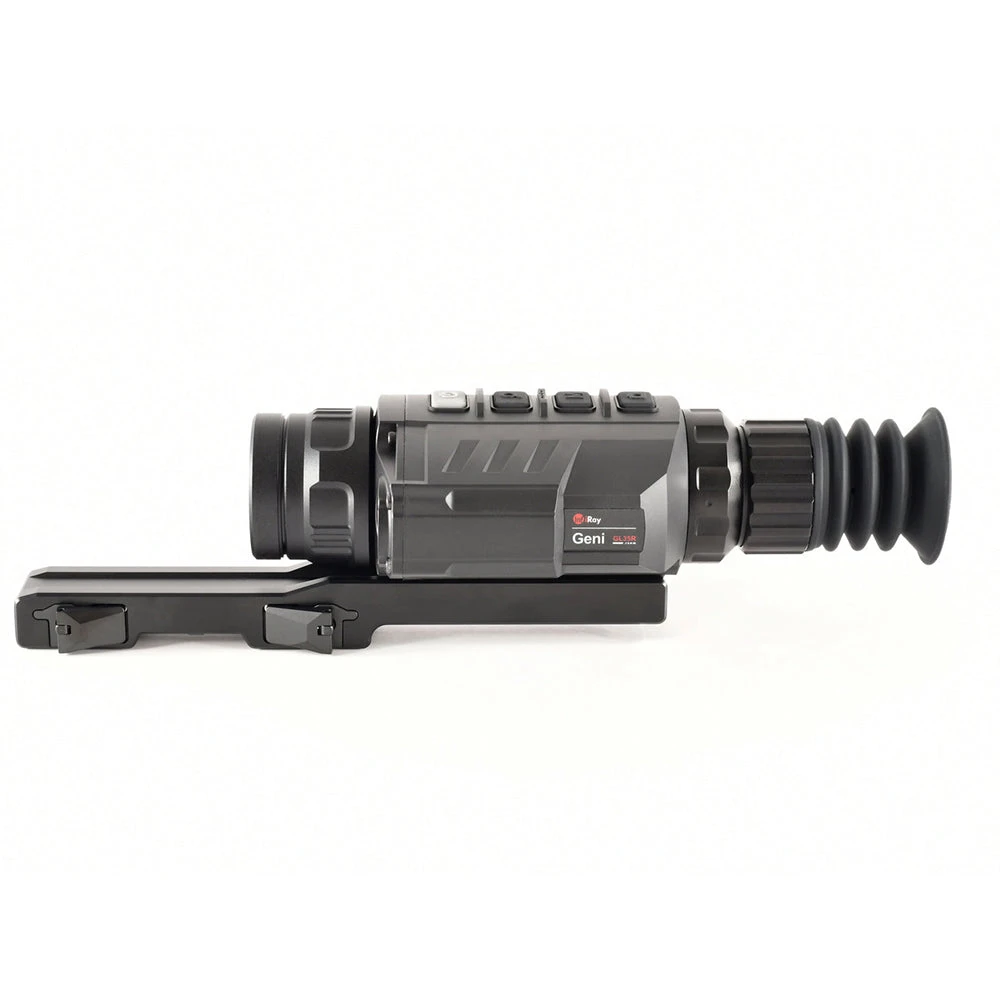

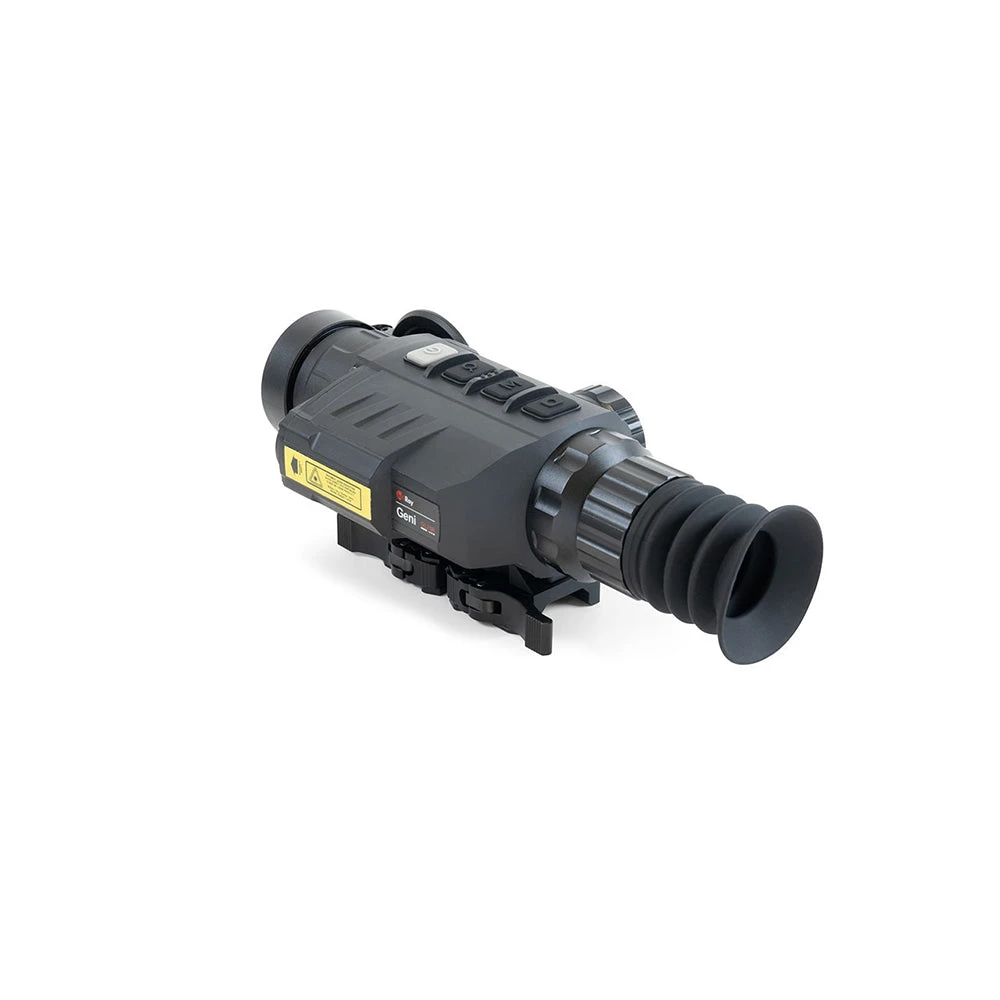

iRay GL35R: Advanced Thermal Rifle Scope with Integrated Laser Rangefinder and Exceptional Durability

• Compact and Affordable: The iRay GL35R is designed to be a more compact and affordable alternative to the full-size RICO Mk1, making advanced thermal imaging accessible to a broader audience.
• Integrated Laser Rangefinder: This is the first addition to the RICO family to include a built-in laser rangefinder, delivering precise distance measurements directly within your field of view.
• High-Performance Optics: Features high-speed germanium objective optics and a sharp HD OLED display for superior image quality, critical for identifying targets.
• Innovative Battery Technology: Equipped with a new high-density 26650 battery configuration, providing up to 7 hours of run-time per charge and ensuring easy replacement with commercially available batteries from leading manufacturers like NITECORE.
• Lightweight and Robust: Constructed with a smaller chassis and a shorter eyepiece focal length, the GL35R maintains a lightweight yet rugged build, ideal for the demanding conditions encountered by hunters.
• User-Friendly Interface: Incorporates intuitive controls with a 4-summary layout and supports features like onboard video and image recording, wireless data transmission, and a user-updatable firmware.
• Versatile Functionality: Comes with multiple reticles, color palettes, picture-in-picture mode, one-shot zero, and a mobile app for an enhanced user experience.
• Durable Design: Built to withstand harsh environments with a recoil rating of 1000 g/s² and IP67 ingress protection, ensuring reliability in all weather conditions.

iRay GL35R Review

What are some common accessories to add to the iRay GL35R?

• External Battery Packs: Extend the operational time beyond the standard 4-7 hour battery life.
• Additional 26650 Batteries: Ensure you have spare batteries readily available for quick swaps.
• Quick Release Mounts: Provide rapid attachment and detachment of the scope to your firearm.
• Protective Lens Covers: Safeguard the objective lens from scratches, dust, and debris.
• Extended Eyepiece: Improve viewing comfort and reduce eye strain during extended use.
• Solar Chargers: Offer a renewable energy source for recharging batteries in the field.
• Screen Protectors: Shield the OLED display from scratches and damage.
• Bluetooth Remote Controls: Allow for easier control of the scope’s functions without having to physically touch the unit.
• Thermal Imaging Targets: Enhance the calibration and accuracy of the thermal imaging system.
• High-Quality Cleaning Kits: Ensure the lens and optics remain clean and provide clear imaging.

iRay GL35R Features and Specs

The iRay GL35R is an advanced thermal weapon sight that features an integrated laser rangefinder, bringing together high-performance capabilities and a compact design. Built as a more affordable and smaller alternative to the RICO Mk1, the GL35R combines many of the familiar attributes of its predecessor with new innovations such as the 26650 battery configuration and a high-performance 905nm LRF micro-module. The device is equipped with high-speed germanium optics, an HD OLED display, and is capable of image and video capture. Moreover, it boasts a rugged build with IP67 ingress protection, making it suitable for harsh environmental conditions. The GL35R ensures a blend of top-tier detection and ranging capabilities supported by an easy-to-use interface and wireless data transmission.

Key Features

• Integrated Laser Rangefinder: High performance 905nm LRF micro-module
• Display: HD OLED with 1024 × 768 resolution
• Optical and Digital Magnification: 3X optical and 4X digital magnification
• Objective Lens: 35mm f/1.1 high-speed germanium optics
• Battery: 26650 configuration offering a runtime of 7 hours
• Data Capture: Supports image and video recording, 32GB storage capacity
• Wireless Connectivity: Built-in WiFi, compatible with a mobile app
• Durability: IP67 ingress protection and robust polymer housing
• Environmental Adaptability: Operating temperature range from -4°F to 122°F
• User Interface: Intuitive, multiple reticles, color palettes, and one-shot zero
• Mounting: Picatinny STD-1913 rail interface
• Additional Features: Electronic compass, multiple reticles, manual focus mechanism, startup time under 10 seconds

Specifications

Optics

• Objective Focal Length: 35mm f/1.1
• Display Type: OLED
• Eye Relief: 40mm
• Digital Magnification: 4X
• Optical Magnification: 3X
• Detection Range: 1750 Yards
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 7.5°
• Vertical Angular Field of View: 5.7°
• Objective Diameter: 35mm
• Objective F#: 1.0
• Focusing Mechanism: Manual Focus
• Diopter Range: -4 – +4
• Display Resolution: 1024 × 768

Features & Performance

• Onboard Recording: Video and Image
• Warranty: 5 Years
• Rangefinder: Internal LRF
• Picture-in-Picture: Yes
• Reticle: 8
• Color Palettes: 4
• Stand-by Mode: Yes
• One-Shot Zero: Yes
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Wifi: Yes
• Image Capture: Yes
• Connector Type: USB-C
• Storage Capacity: 32gb
• Power Source: 26650 Battery
• Run Time: 7 Hours
• External Power Source: USB-C
• Startup Time: Under 10 Seconds

Environmental Specifications

• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67
• Operating Temperature Range: -4°F to 122°

Sensor Specifications

• Sensor Resolution: 384×288
• Sensor Type: InfiRay MICRO II
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <40mK
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Sensor Frame Rate: 50Hz
• Device Technology: Thermal Imaging

Physical

• Housing Material: Polymer
• Mounting Interface: Picatinny STD-1913 rail
• Weight: 23.9 oz.

What’s in the box of the iRay GL35R?

• (1) Rico GL35R Thermal Rifle Scope
• (1) Soft Case with Carrying Strap
• (1) 26650 Battery
• (1) Charger
• (1) USB-C Data/Charging Cable
• (1) Picatinny Mount
• (4) M5 Screws
• (1) Allen Key
• (5) Heated Target for Zeroing
• (1) Lens Cloth
• (1) Manual

iRay GL35R FAQs

What is the battery life of the iRay GL35R?

The iRay GL35R offers a battery life of up to 7 hours on a single 26650 battery. For extended use, additional batteries can be easily swapped out in the field.

How do I charge the iRay GL35R?

The iRay GL35R can be charged using the included USB-C data/charging cable. Simply connect the cable to the scope and an appropriate power source to begin charging.

Is the iRay GL35R waterproof?

Yes, the iRay GL35R is rated IP67, which means it is fully protected against dust and can withstand being submerged in water up to 1 meter for 30 minutes.

Can I record videos and take images with the iRay GL35R?

Yes, the iRay GL35R has onboard recording capabilities, allowing you to capture both videos and images directly to its 32GB internal storage.

What materials are used in the construction of the iRay GL35R?

The housing of the iRay GL35R is made from a durable polymer material, providing robustness and lightweight properties ideal for field use.

What are the magnification levels available on the iRay GL35R?

The iRay GL35R features 3X optical magnification and can digitally magnify up to 4X, giving you a comprehensive view of distant targets.

Can the firmware of the iRay GL35R be updated?

Yes, the iRay GL35R supports user-updatable firmware, ensuring that you can easily keep your device up-to-date with the latest software enhancements.

What is the detection range of the iRay GL35R?

The iRay GL35R has a detection range of up to 1750 yards, providing excellent performance for long-range target acquisition.
