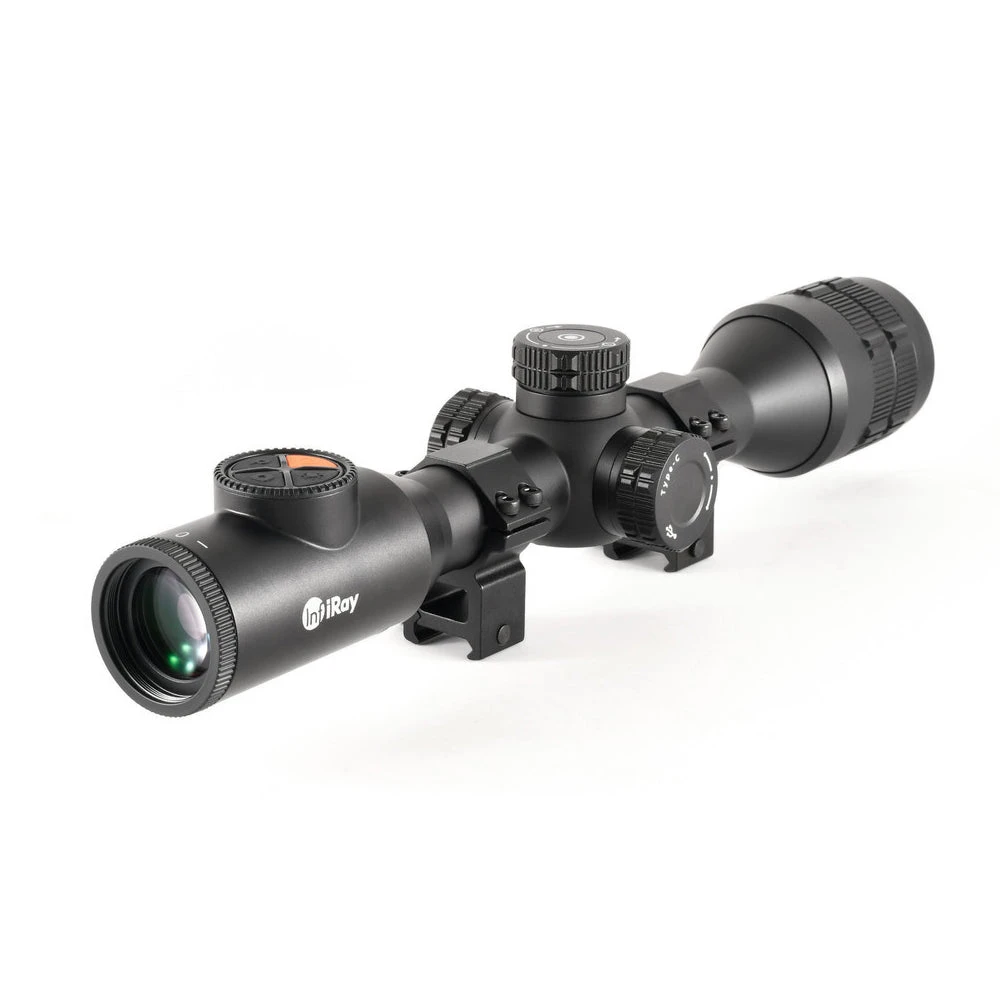

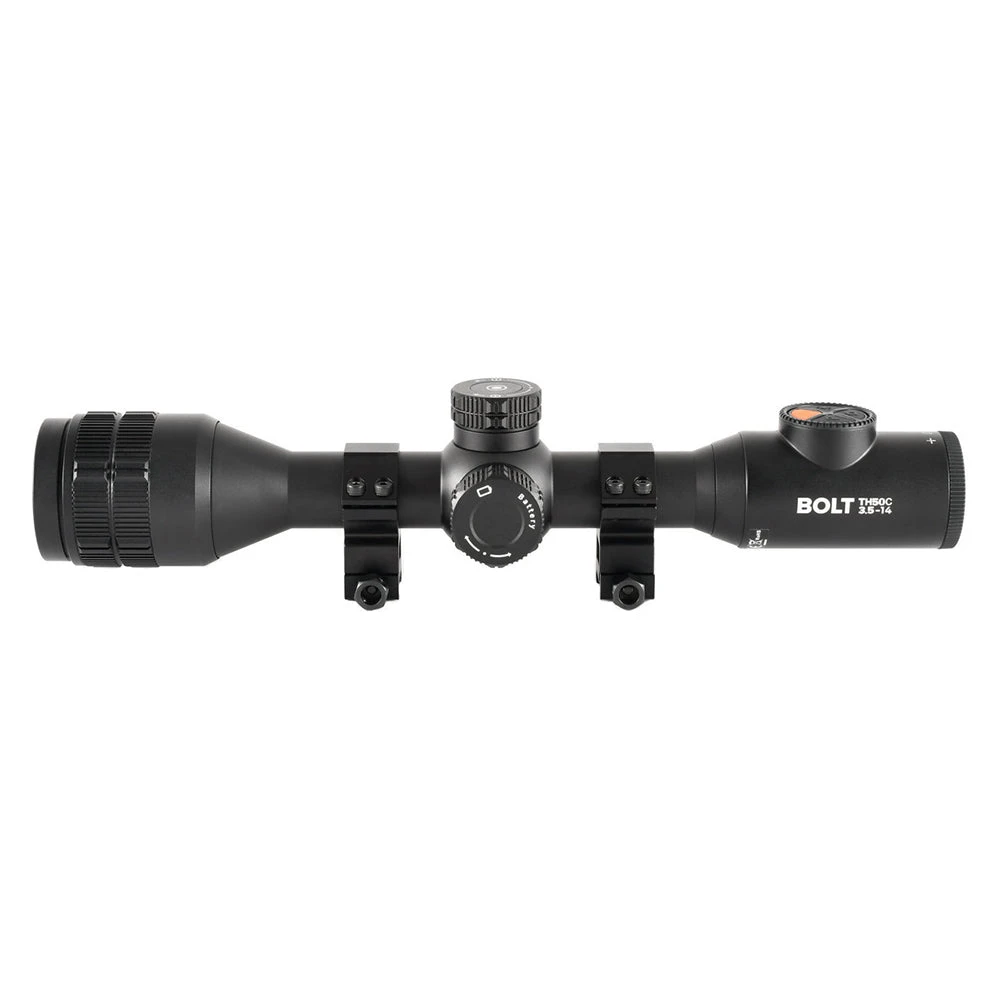

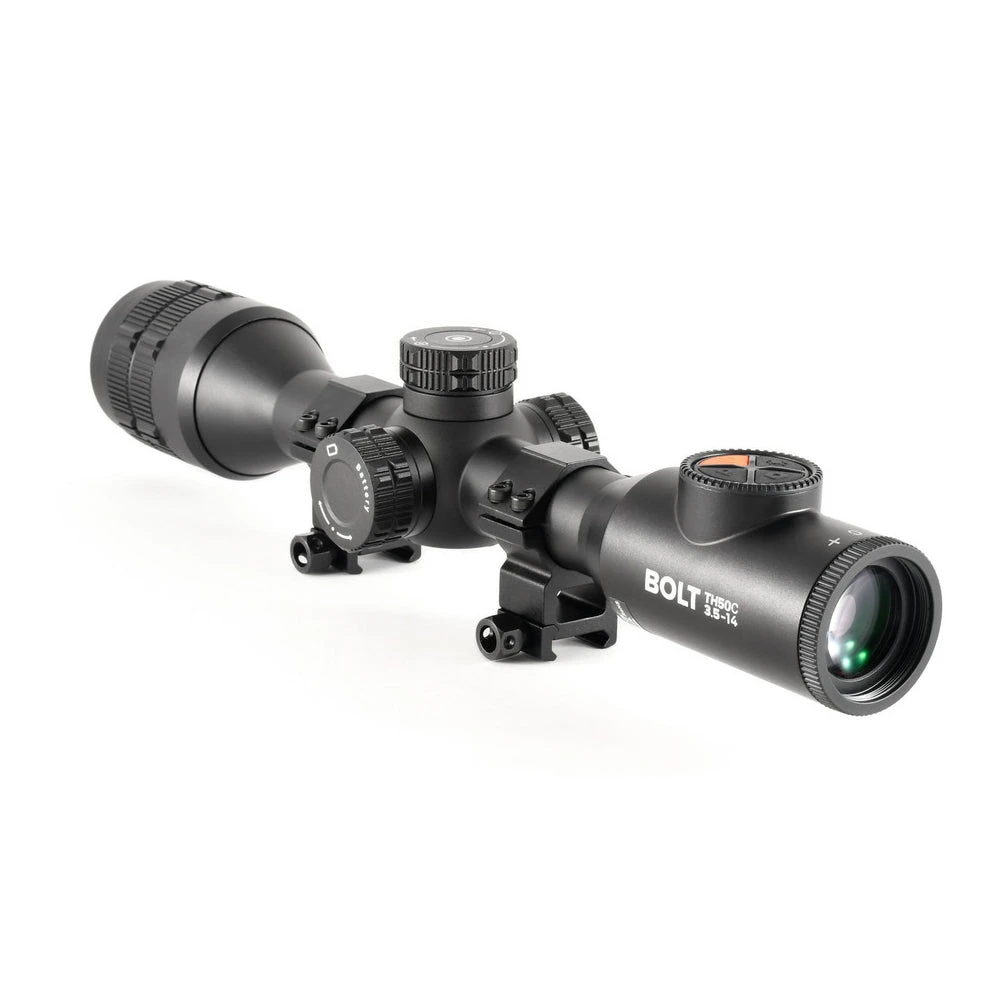

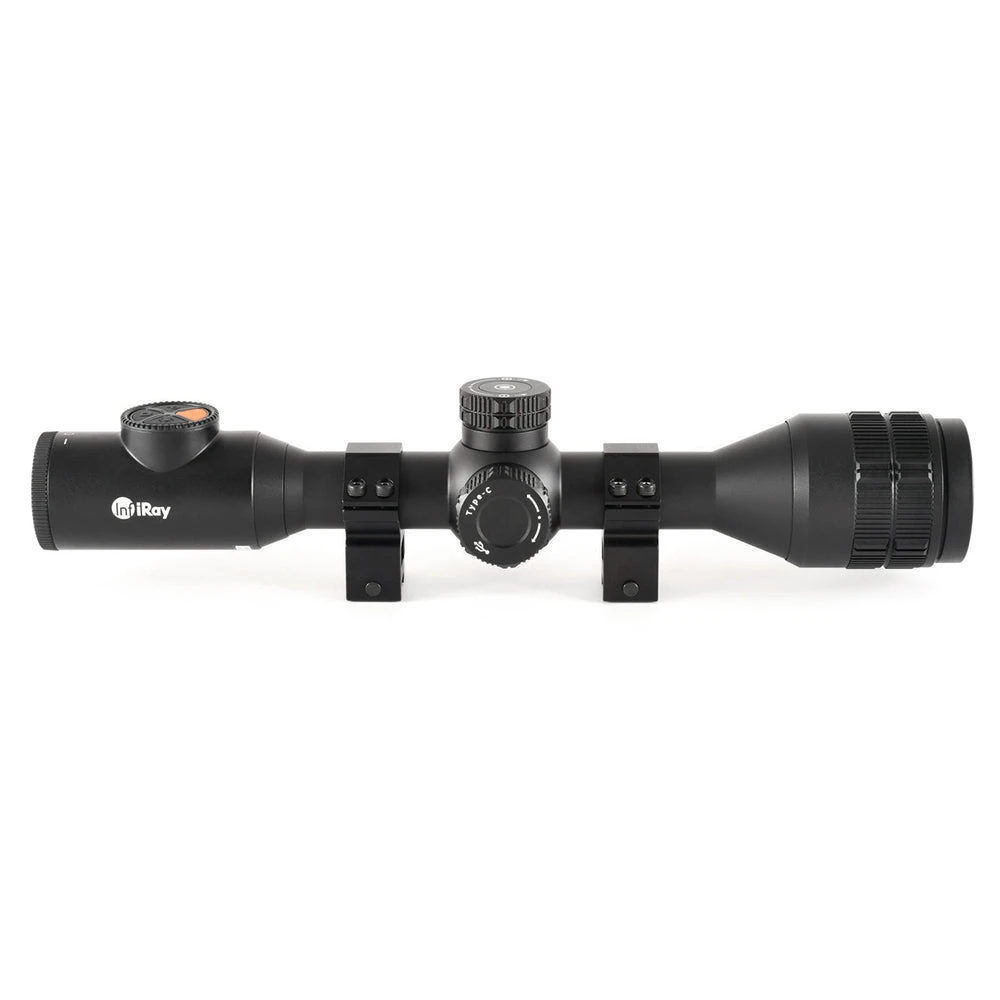

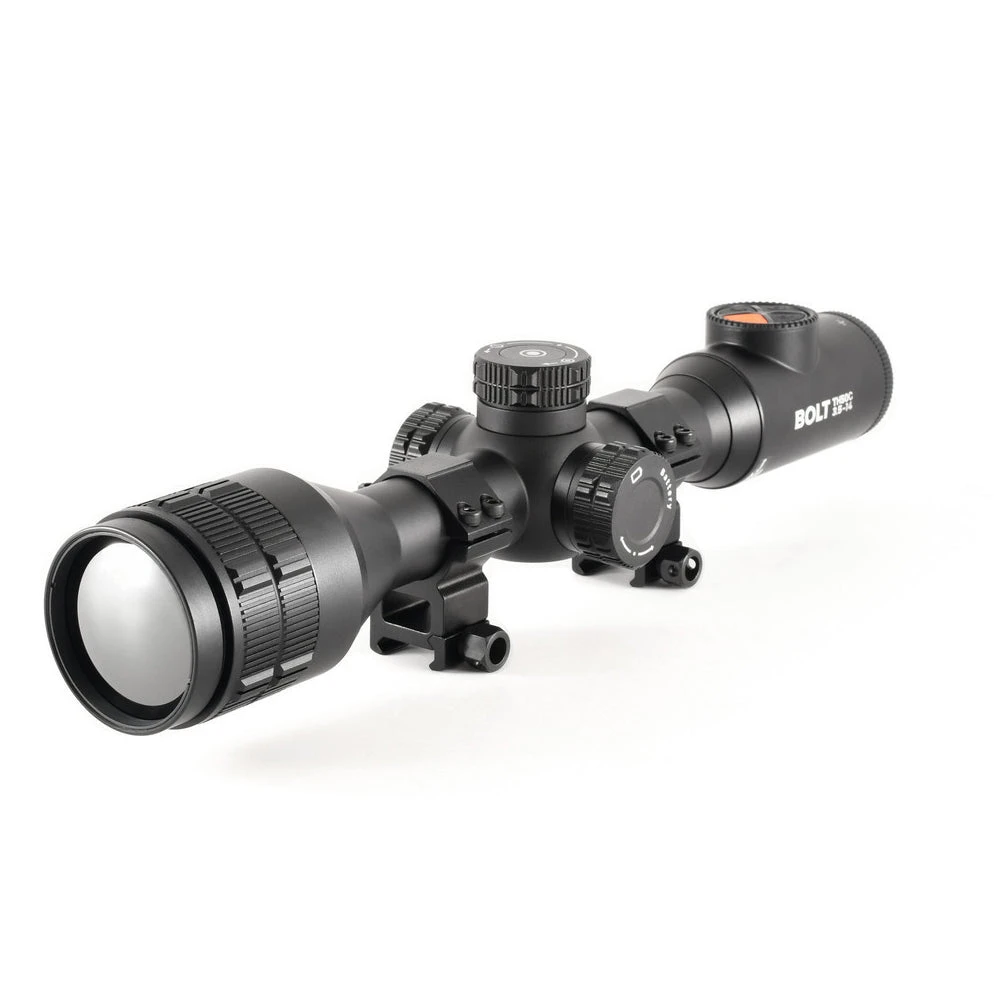

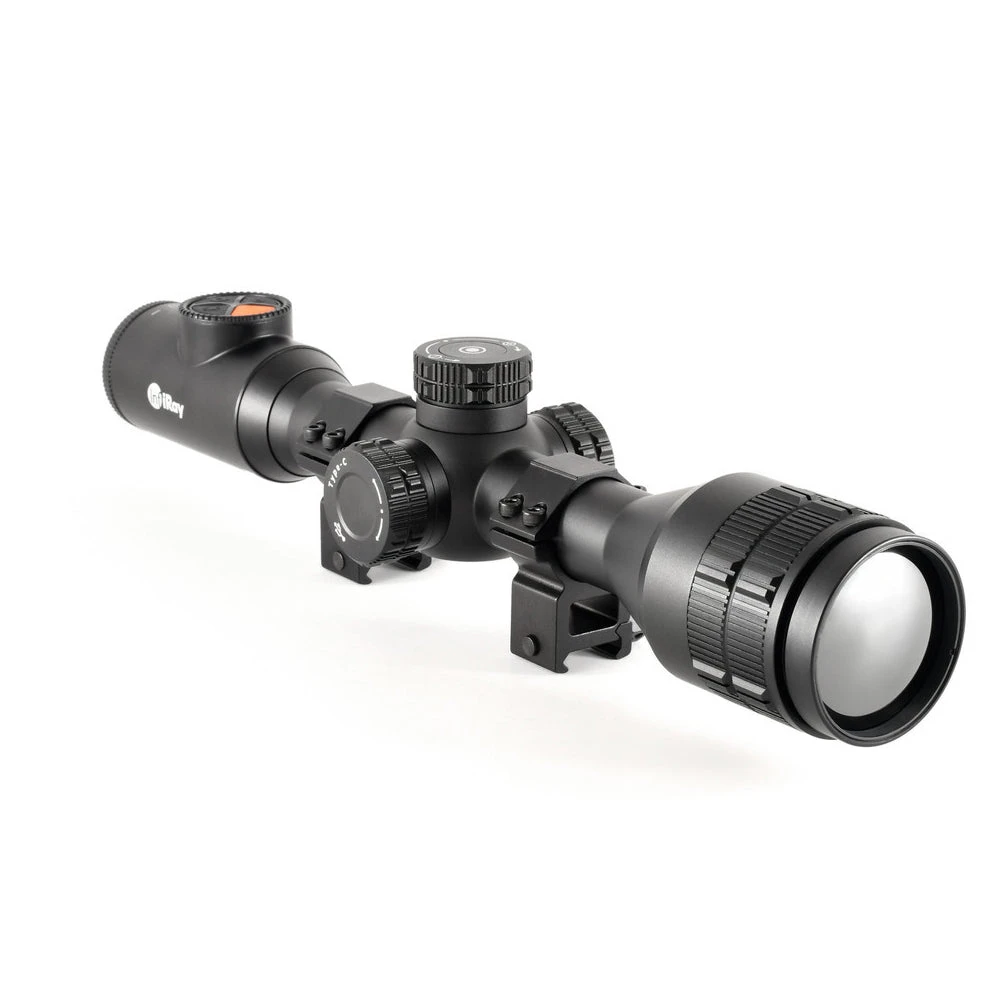

iRay Bolt TH50-C | Thermal Weapon Sight

• The iRay Bolt TH50-C is a high-performance thermal rifle scope equipped with advanced infrared technology.
• The Bolt TH50-C has a user-friendly interface with auto-hide features for an unobstructed image view.
• It offers customizable settings like image hue adjustment (warm and cold), and a factory reset option for restoring to default settings.
• The Bolt TH50-C is equipped with a Control Turret for easy navigation and selection in the settings submenu.
• It incorporates a digital compass and status bar which can be set to automatically hide after periods of inactivity.
• A factory reset on the Bolt TH50-C restores multiple settings to factory defaults, including color palette, display brightness, image sharpness, magnification, and reticle type and color.
• The Bolt TH50-C has Wi-Fi and Bluetooth capabilities, with the Wi-Fi SSID and password being reset to default values during a factory reset.

iRay Bolt TH50-C Review

iRay Bolt TH50-C Features

• High-resolution thermal imaging: The iRay Bolt TH50-C offers superior image quality, enabling clear target detection and identification.
• Versatile reticle options: The device comes with an array of reticle options to suit varied shooting situations.
• Auto-hide interface: The TH50-C features an auto-hide interface that ensures unobstructed viewing by hiding the status bar, digital compass, and all interface icons after a period of inactivity.
• Personalized image hue: This product allows users to set the image temperature according to their preference, with options for both warm and cold hues.
• Easy-to-navigate control turret: The Bolt TH50-C is equipped with a control turret that offers easy navigation through the settings submenu.
• Factory reset feature: With one simple action, users can restore the device to its original factory settings.
• Efficient battery: The device comes with an internal rechargeable battery pack that is designed for extended use.
• Maintenance-friendly: The TH50-C is designed for easy maintenance, with specific instructions for cleaning and upkeep provided in the manual.

What’s in the box of the iRay Bolt TH50-C?

• (1) iRay Bolt TH50-C V2 Thermal Imaging Rifle Scope
• (1) Objective Lens Cap
• (1) Eyeshade
• (2) 30mm Ring Mounts for Picatinny Rail
• (1) Soft Case
• (1) USB-C Cable for Data/Video
• (1) Wall Adapter
• (1) Lens Cloth
• (1) User Manual

iRay Bolt TH50-C Specifications

• Product Name: iRay Bolt TH50-C
• Display type: OLED
• Digital Magnification: 3.5×
• Color Palette: White Hot by default, other options available
• Reticle type: 1 by default, other options available
• Reticle Color: Black by default, other options available
• Image hue: Cold by default, other options available (Warm)
• Language: English by default, other options available
• Units: Meters by default, other options available
• Wi-Fi: Available
• Bluetooth: Available
• Gravity Sensor: Available
• Digital Compass: Available
• Calibration: Automatic
• Standby: Available
• Ultra-clear mode: O by default
• Factory Reset: Available
• Wi-Fi SSID: TH50_XXXXXX
• Wi-Fi Password: 12345678
• Firmware Information: GUI version, SYS Info, boot version, FPGA, PN and SN number, and hardware version.
• Maintenance: Basic maintenance recommended twice a year

iRay Bolt TH50-C FAQs

How to turn on the auto-hide feature on the InfiRay Bolt TH50C Thermal Scope?

In the settings submenu, rotate the Control Turret to select the status bar menu item. Short press the Control Turret to enter the status bar submenu. Rotate the Control Turret to move through the options, hide and show. Short press the Control Turret to confirm the selection and return to the settings submenu.

How can I change the image hue on my iRay Bolt TH50C?

In the settings submenu, rotate the Control Turret to select the image hue menu item. Short press the Control Turret to enter the image hue submenu. Rotate the Control Turret to move through the hue options, warm and cold. Cold is selected by default. Short press the Control Turret to confirm the selection and return to the settings submenu.

How to factory reset the iRay TH50-C?

In the settings submenu, rotate the Control Turret to select the factory reset menu item. Short press the Control Turret to enter the factory reset submenu. Two options, Yes and No, appear; Yes will restore factory settings and No will cancel the operation. Yes is selected by default. Short press the Control Turret to select Yes to confirm the factory reset. Factory settings will be restored and the TH50C V2 will reboot automatically.

What information is displayed in the ‘Info’ section of the iRay Bolt TH50-C V2?

The ‘Info’ section displays the following information about the TH50C V2: GUI version, SYS Info, boot version, FPGA, PN and SN number, and hardware version.

What are some of the basic maintenance steps for the iRay Bolt TH50-C?

Basic maintenance should include cleaning the surface of the external metal and plastic components with a clean, dry cotton cloth, cleaning the electric contacts and battery slots using a non-greasy organic solvent, and checking the lens and eyepiece for any dirt or sand. It is recommended to carry out this maintenance at least twice a year.
