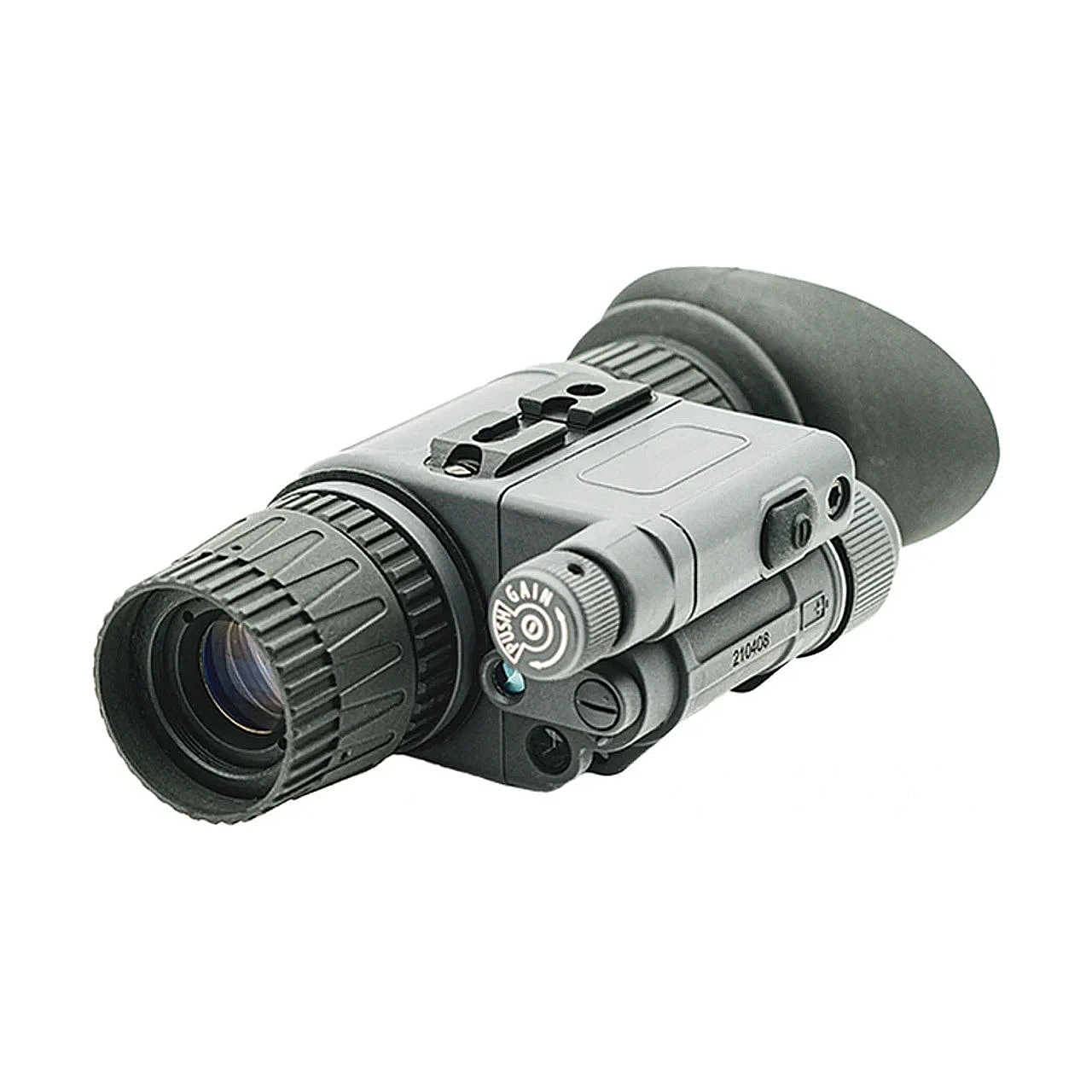

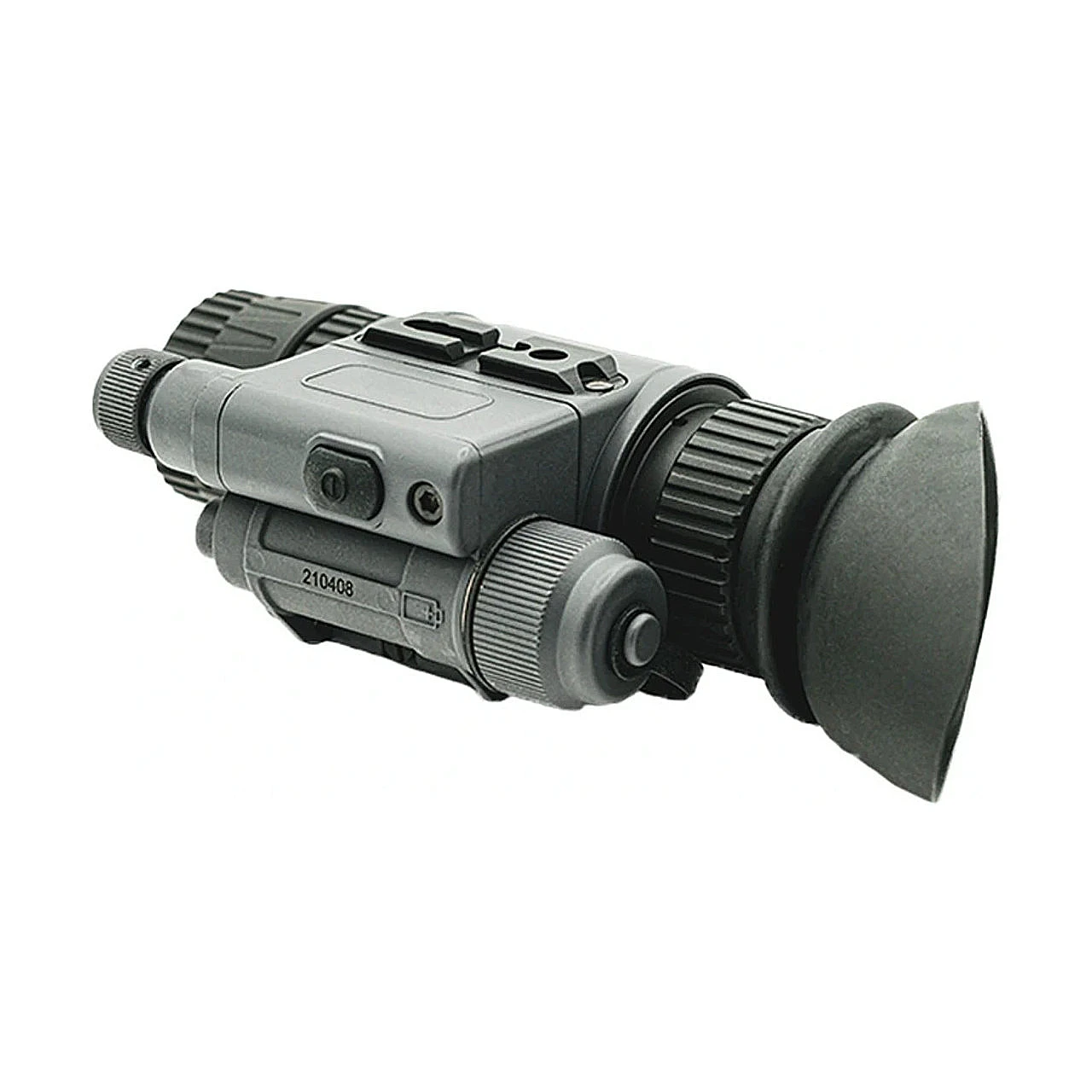

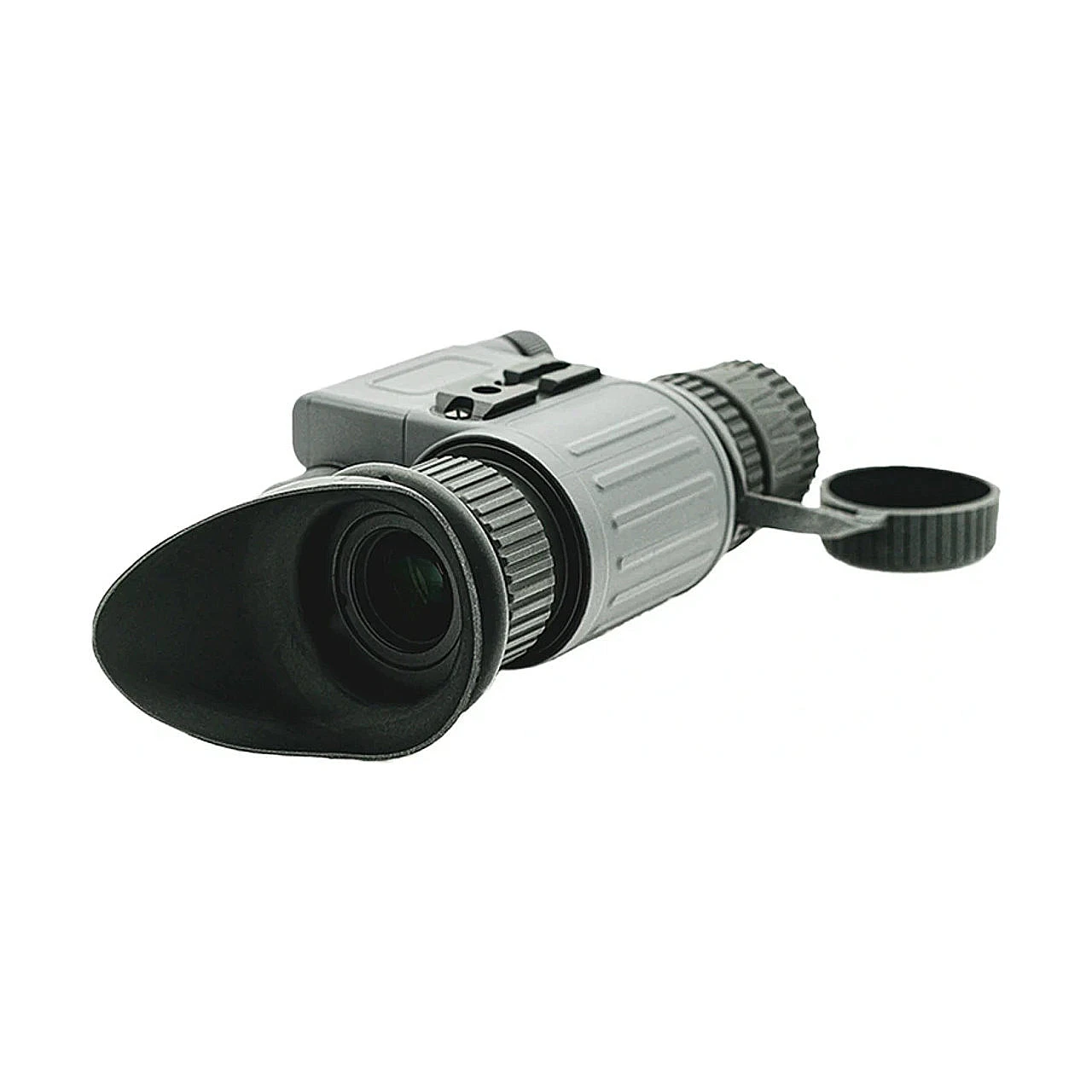

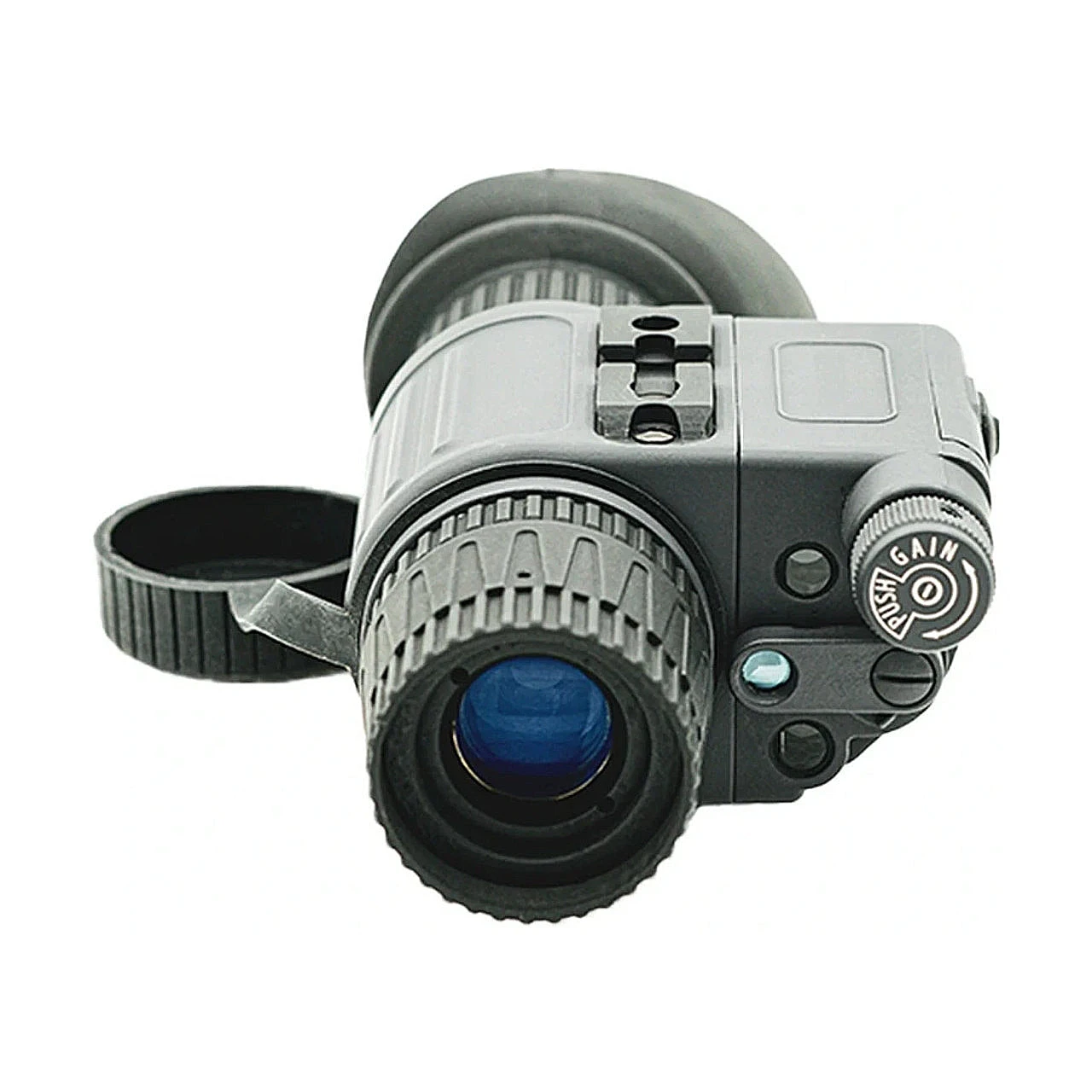

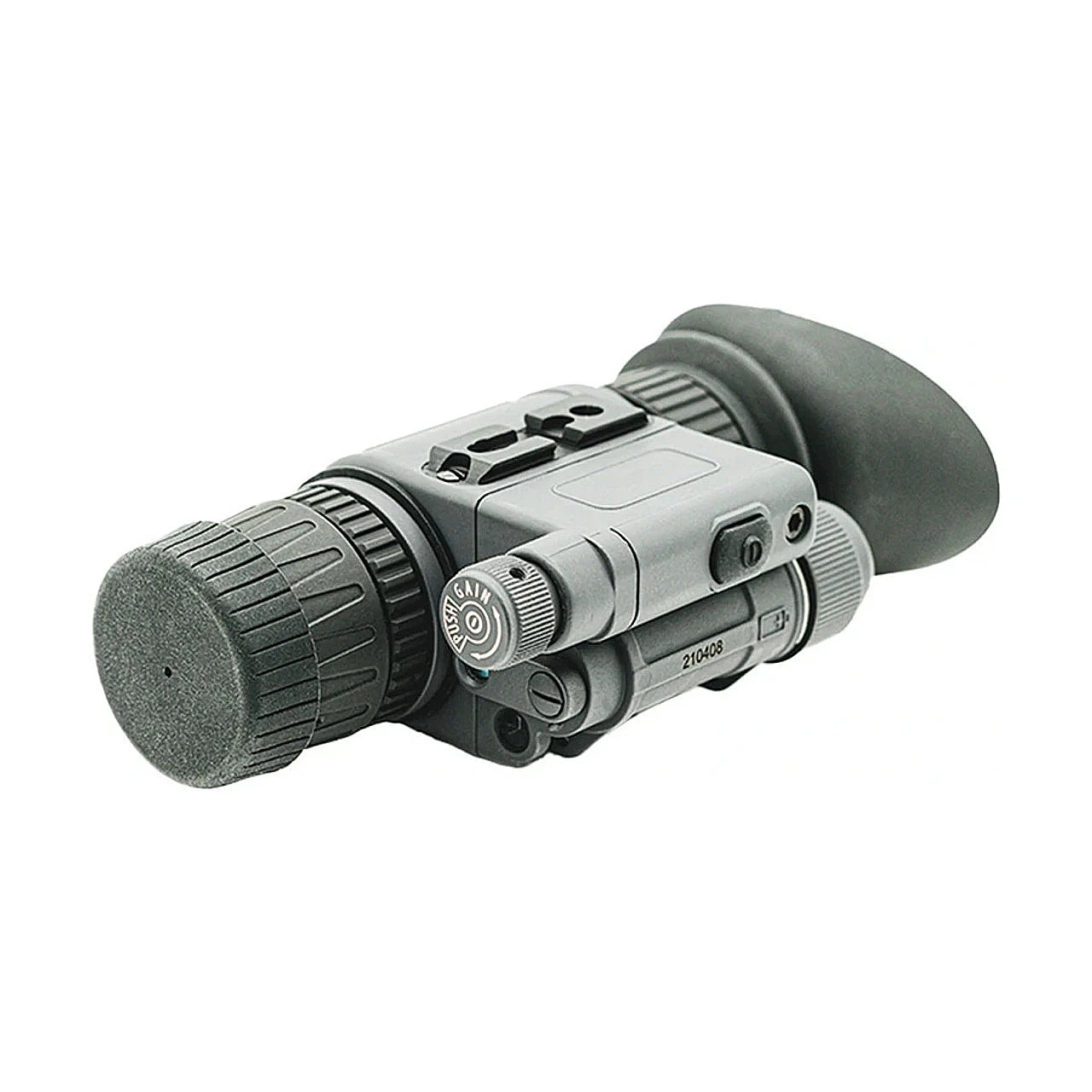

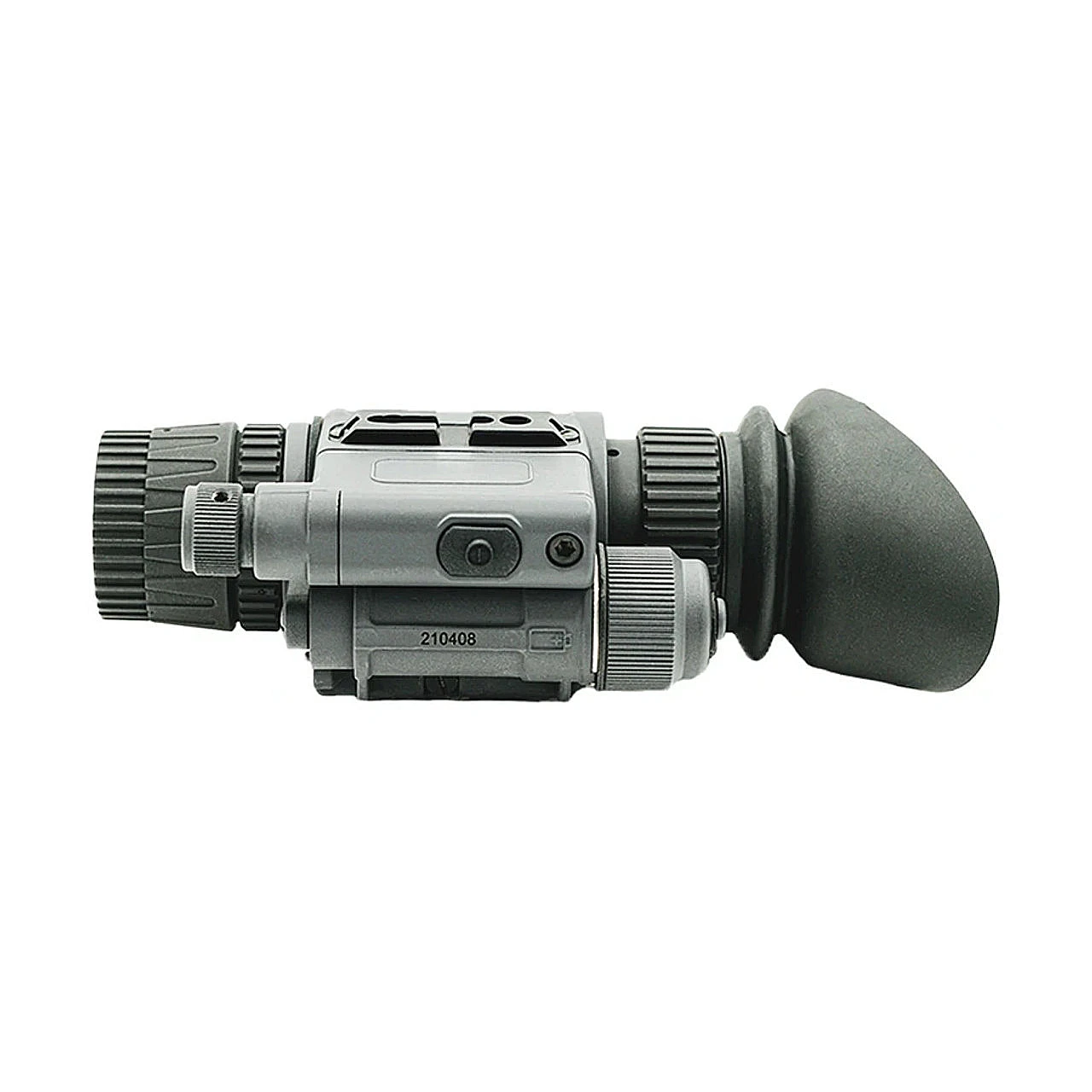

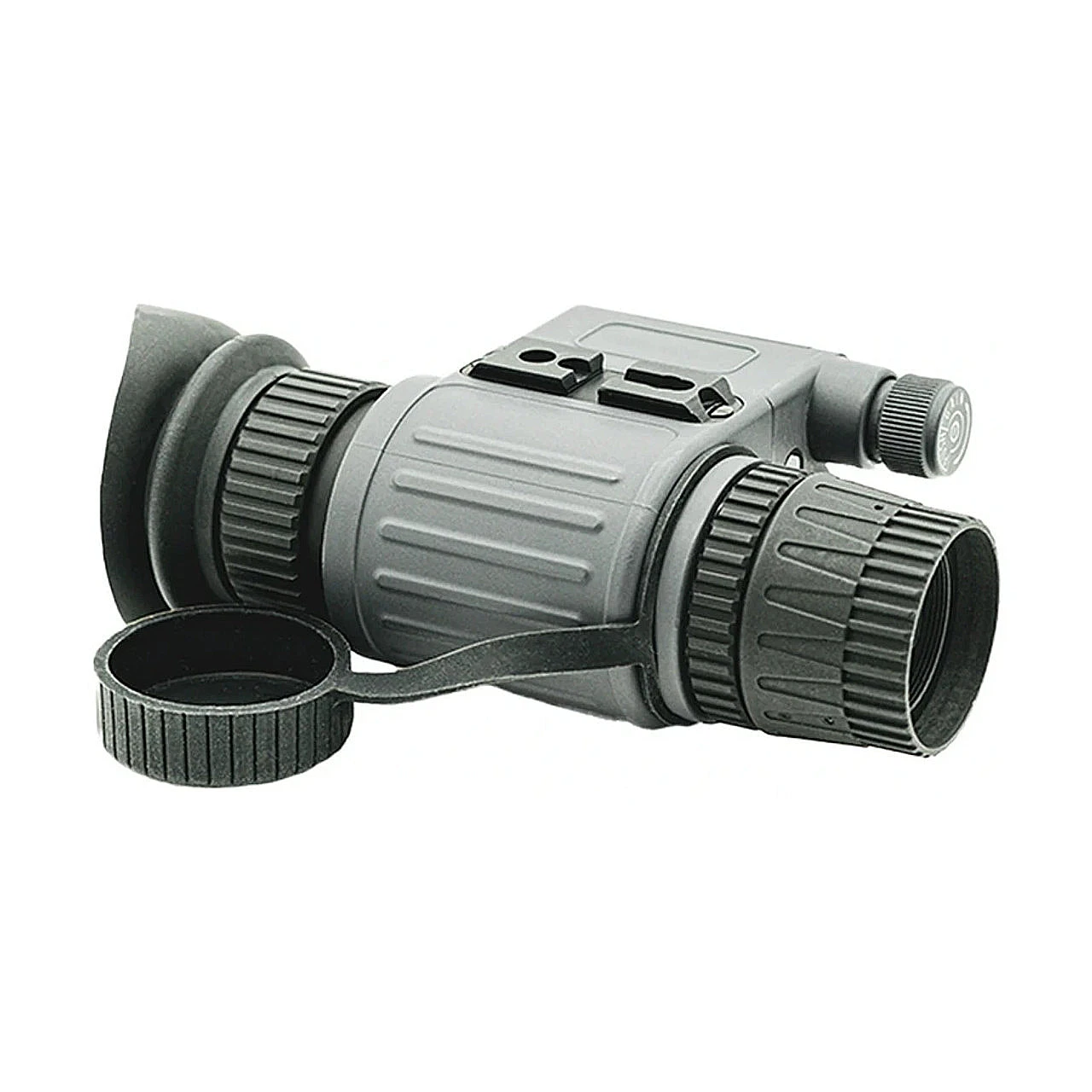

Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular, 2000 – 2376 FOM, Ghost White Phosphor

• The Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular is a compact and lightweight multi-purpose night vision device, perfect for professionals and enthusiasts alike.
• Designed for versatility, it can be used as a handheld device or mounted on a head or helmet for hands-free operation.
• Equipped with premium Pinnacle image intensifier tubes, it offers exceptional clarity and performance, with options of a minimum of 2000 FOM or upgraded tubes guaranteeing 2376 FOM.
• The Ghost White Phosphor technology ensures a crisp, high-contrast image, preferred by elite operators globally.
• Its 51-degree field of view (FOV) provides superior situational awareness, helping users easily track movement and stay aware in dynamic environments.
• Powered by either a single AA or CR123A battery, it offers an impressive battery life of up to 40 hours.
• Built to endure, it features an IP67 environmental rating, making it resistant to extreme temperatures and harsh conditions.
• Integrated infrared illumination and manual gain control add flexibility and help users adapt to changing light situations.

What are some common accessories to add to the Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular?

• Head Mount Assembly: Achieve hands-free functionality with this secure head mount, allowing extended use in dynamic environments without requiring manual handling of the monocular.
• Helmet Mount Assembly: Designed for seamless integration with tactical helmets, this mount ensures stability and comfort during prolonged operations, enhancing situational awareness.
• IR Illuminator: Boost visibility in complete darkness with this additional infrared light source, optimized to extend the MNVD-51’s capabilities in low-light environments.
• 3x Magnifier Lens: Expand your viewing range by attaching this lens to increase magnification, making it suitable for identifying objects or targets at greater distances.
• Weapon Mount Kit: Transform your monocular into a precision tool for tactical or hunting purposes by mounting it to your firearm, providing clear visuals without compromising accuracy.
• Hard Protective Case: Safeguard your monocular and accessories with this durable case, ensuring safe transport and storage even in demanding conditions.
• Rechargeable Battery Kit: Maximize operational time using rechargeable batteries and a reliable charger, ideal for extended missions or outdoor adventures.
• Daylight Filter: Protect your monocular’s lens and prevent accidental exposure to bright light, ensuring extended durability and performance in daylight settings.
• Retention Strap or Lanyard: Keep your device secure and within reach with this sturdy strap, reducing the chance of accidental drops or loss during use.
• Tactical Pouch: Organize and carry your essential accessories in this compact pouch, designed for quick access and efficient storage.

Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular Features and Specs

The Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular is a compact, lightweight, and versatile night vision device designed for professional and recreational use. It offers superior performance with Pinnacle image intensifier tubes, providing exceptional clarity and reduced blemishes. With a wide 51-degree field of view and the ability to be used as a handheld, head-mounted, or helmet-mounted device, it delivers maximum situational awareness in diverse environments. The MNVD-51 ensures long operational times with compatibility for both AA and CR123A batteries, making it reliable for extended use.

Key Features

• Compact and Lightweight design for easy use and portability.
• Versatile Mounting Options including handheld, head-mounted, or helmet-mounted configurations.
• Pinnacle Image Intensifier Tubes with minimal blemishes and either 2000 FOM or premium 2376 FOM options.
• Ghost White Phosphor technology for enhanced clarity and ease of observation.
• 51° Field of View for improved situational awareness.
• Manual Gain Control and Automatic Brightness Control for adaptable operation in various lighting conditions.
• Built-in Infrared Illuminator with infrared and low-battery indicators visible in the field of view.
• Extended Battery Life of up to 40 hours with a CR123A battery.
• Durable and Reliable with an IP67 environmental rating and a wide operating temperature range (-51° C to +49° C).
• Clear Vision with diopter adjustment from -6 to +2 and a focus range from 0.25m to infinity.
• Compact Dimensions at 6.3 x 2.1 x 3.1 inches and weight of just 0.7 lbs.

What’s in the box of the Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular?

• (1) MNVD-51 Night Vision Monocular
• (1) Lens Cap
• (1) Eyecup
• (1) Sacrificial Window
• (1) Demist Shield
• (1) Product Manual
• (1) Battery Key
• (1) Lens Cloth
• (1) Soft Carrying Case
• (1) CR123A Battery
• (1) Spec Sheet

Armasight MNVD-51 Gen 3 Pinnacle Night Vision Monocular FAQs

What is the battery life of the Armasight MNVD-51?

The MNVD-51 offers up to 40 hours of runtime with a CR123A battery or 24 hours with a single AA alkaline battery, both measured at 20°C.

Can the MNVD-51 Gen 3 Pinnacle Night Vision monocular Armasight be used in different mounting configurations?

Yes, the MNVD-51 can be used as a hand-held device or mounted on a head or helmet, offering versatility for various operational needs.

What is the field of view (FOV) of the MNVD-51 Gen 3 Pinnacle Night Vision Armasight monocular?

The MNVD-51 provides an expanded 51-degree field of view, allowing for greater situational awareness and easier navigation of surroundings.

What type of image intensifier tubes are available for the Pinnacle MNVD-51 Gen 3 Night Vision monocular?

The MNVD-51 is available with Pinnacle Image Intensifier Tubes (minimum 2000 FOM) or Pinnacle 2376 Image Intensifier Tubes (minimum 2376 FOM), both available in Ghost White Phosphor.

Is the Armasight Pinnacle MNVD-51 Gen 3 Night Vision monocular equipped with an infrared (IR) illuminator?

Yes, the MNVD-51 has a built-in infrared illuminator, along with indicators for IR and low battery status visible within the FOV.

How durable is the MNVD-51 Gen 3 Pinnacle Night Vision monocular in tough environments?

The monocular is rated IP67 for environmental protection and is designed to operate in extreme temperatures ranging from -51°C to +49°C (-60°F to +120°F).

What is included in the package with the Armasight Gen 3 MNVD-51 Pinnacle Night Vision monocular?

The package includes the MNVD-51, lens cap, eyecup, sacrificial window, demist shield, product manual, battery key, lens cloth, soft carrying case, a CR123A battery, and the warranty documentation.
